Aritco HomeLift Access
The Aritco HomeLift Access is designed for practical everyday accessibility in the home. With multiple platform sizes, it provides safe travel for wheelchair users, families, or carers. Powered by an energy-efficient screw and nut drive, the self-contained design requires no separate machine room and can be installed in just a few days.
Lift Enquiry
Product Pages Enquiry Form
span and up to 30%
less energy to run.
safety edges, and
secure deadlock
system.
required, no
machine room.
double, half-height,
or fire-rated
options.
Why Homeowners Choose the Aritco HomeLift Access
The Aritco HomeLift Access is a popular choice for families who want their homes to be practical, welcoming, and inclusive. With a range of platform sizes available, it can accommodate a wheelchair user and carer together, offering freedom of movement across every floor.
For multigenerational homes, it offers reassurance and convenience, supporting independence for older family members while easing day-to-day routines for everyone. Plus, most projects are completed within just a few days, keeping disruption to a minimum.
Door & Access Configurations
The Aritco HomeLift Access offers flexible door layouts to suit different homes and access needs. Use the LiftGuide tool to explore these options in advance and design a lift that fits your space and requirements.
Single / Double Glass Doors |
Choice of widths and styles to match layout and access requirements |
Half-Height Gate |
Suitable for travel under 3 metres; ideal for low headroom situations |
Fire-Rated Doors |
EI60 fire doors available for projects requiring enhanced protection |
Automatic Door Opener |
Press a button at the landing call station for automatic opening, with concealed openers on glass doors or external openers on fire doors |
Thresholds & Ramps |
Oak effect or aluminium thresholds supplied. A ramp option available for installations without a pit. |
Smart Connectivity
The Aritco HomeLift Access is equipped with connected technology to support safe, reliable everyday use. Through the SmartApp, homeowners can view the lift’s status, check usage statistics, access key information, and apply floor locks for added control. This makes it easy to manage the lift directly from a phone or tablet.
For long-term reassurance, the lift also connects to Aritco SmartFleet . This provides 24-hour monitoring, with real-time data on the lifts status, alarm notifications, service indicator and a digital maintenance report. Remote troubleshooting can be carried out to minimise downtime. Together, these features give both users and carers greater confidence in the lift’s operation.
Safety Features

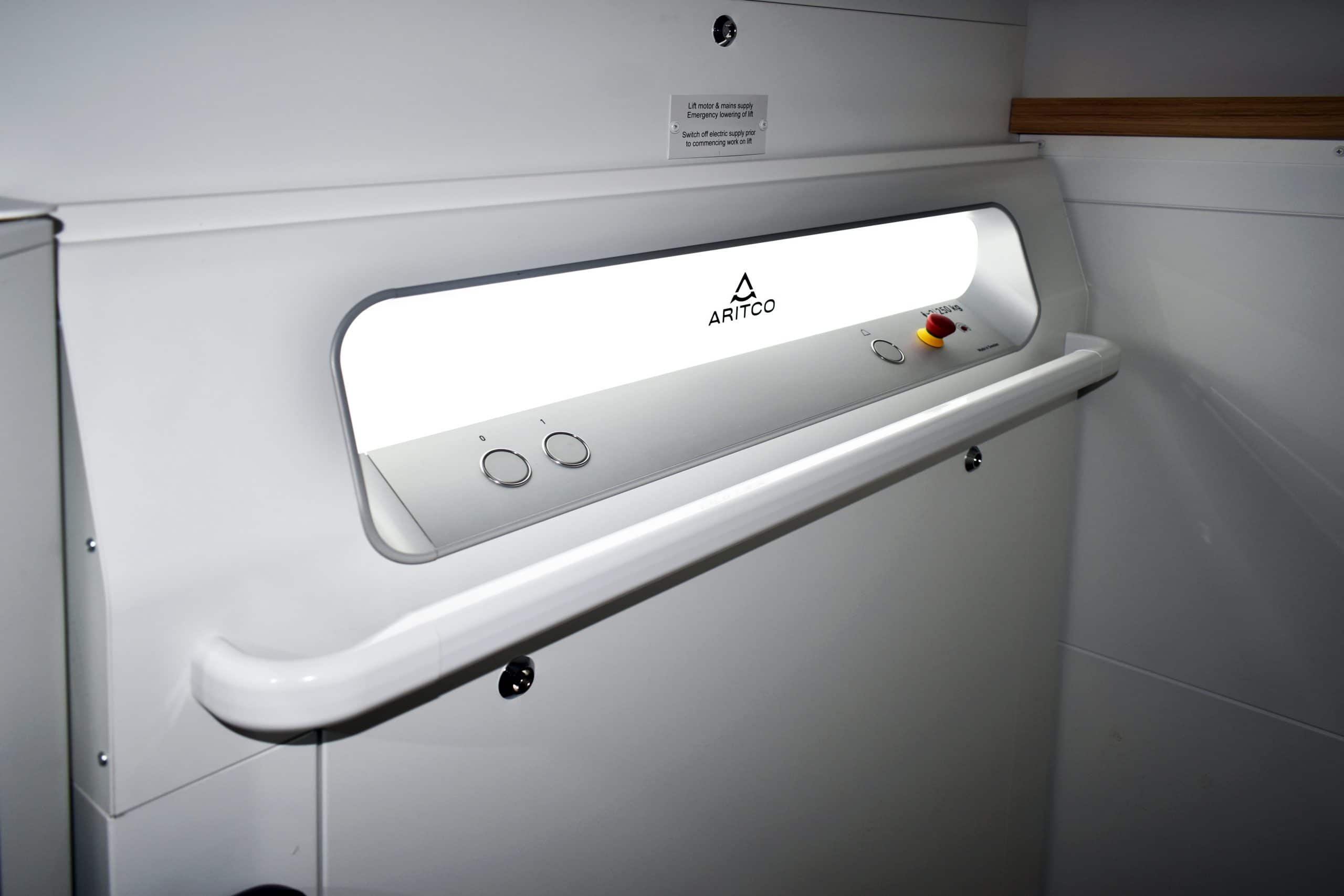

Control Panel |
Fully lit with integrated handrail; emergency stop and alarm buttons. |
Accessible Buttons |
32 mm destination buttons; optional text, numbers, and braille inserts |
Landing Indicator |
Digital display showing floor level, battery warnings, and safety alerts (optional) |
Communications |
Telephone handset standard; Option for an auto-dialler (can be programmed with up to 5 numbers). Connectivity is made via a GSM with a SIM or hardwired via a digital line to the router (VoIP system) |
Emergency Lowering |
Battery-powered descent in a mains failure |
Safety Edges |
Stops movement immediately if an obstruction is detected |
Door Locking |
Electrically operated deadlock prevents unintended door opening |
Key Switch |
Optional control to restrict unauthorised use |
External Alarm Sounder |
Optional loud alarm activated when the emergency button is pressed |
Platform Controls |
Continuous pressure needed for platform travel, giving users complete control over operation |
Design Choices and Finishes
The Aritco HomeLift Access offers a wide choice of finishes and configurations, making it easy to adapt the lift to suit both your space and personal style. The shaft panels are supplied in Traffic White as standard (RAL 9016), with the option to select from a full RAL palette. As an option the solid panels can be substituted with glazed panels in either a clear or tinted finish for added privacy. LED downlights create a bright, safe environment, while flooring options range from practical vinyl to designer Bolon.
For the carrier, you can choose between a half-height side wall or a full-height wall with integrated mirror. A fold-down seat can also be added in selected platform sizes. For a more expressive finish, DesignWall panels are available with artwork from Scandinavian designers, turning the lift into a statement feature.
Technical Specifications
Type |
Passenger & light goods enclosed platform lift for residential use |
Compliance |
Machinery Directive 2006/42/EC, EN 81-41 |
Drive System |
Patented screw and nut system |
Rated Speed |
Max 0.15 m/s |
Travel Height |
250 – 13,000 mm |
Number of Stops |
2–6 |
Number of Doors |
Max. 2 per floor |
Entry Sides |
One, two, or three |
Top Height |
2240 mm standard; 2140 mm or 2040 mm with special height doors; 1100–1600 mm with half-height gate (<3 m travel) |
Platform Controls |
Hold-to-run (button must be pressed continuously) |
Emergency Lowering |
Battery operated |
Motor |
2.2 kW |
Power Supply |
1-phase 230 V or 3-phase 400 V (500 kg requires 3-phase) |
Door Locking |
Electrically operated deadlock |
Enclosure |
Solid panels or optional glass |
Platform Sizes & Loads |
900 × 1040 mm – 250 kg · Opening 1330 × 1190 mm 900 × 1280 mm – 410 kg · Opening 1330 × 1430 mm 900 × 1480 mm – 410 kg · Opening 1330 × 1630 mm 1000 x 1280mm – 410kg. Opening 1430 × 1430 mm 1000 x 1480mm – 410kg Opening 1430 × 1630 mm 1000 × 1980 mm – 500 kg · Opening 1405 × 2130 mm 1100 × 1480 mm – 410/500 kg · Opening 1530 × 1630 mm 1100 × 1580 mm – 500 kg · Opening 1530 × 1730 mm |
Landing Controls |
One-touch operation for simple floor-to-floor calls |
How Installation Works
The Aritco HomeLift Access is designed for straightforward installation with minimal disruption. It can be set into a 50 mm pit for a flush finish, or surface-mounted with a threshold or ramp where excavation isn’t possible. All electrics are integrated into the unit, removing the need for a separate machine room or pump box.
As a modular system, the lift is delivered with its own shaft and can usually be installed within just a few days. Entrances can be configured on one, two, or three sides, making it highly adaptable to different floorplans and layouts.
Why Choose Gartec for Compact Home Access
Every Aritco HomeLift Access is supplied with a 5-year parts warranty, covering the lift in full. The patented screw and nut assembly also carries a 10-year warranty, reflecting its long-term reliability.
With over 30 years of experience, we are recognised as the UK’s leading supplier and installer of platform lifts. Our nationwide service team offers a range of maintenance plans, so homeowners can keep their lift safe, efficient, and dependable year after year. Combined with our award-winning reputation for customer care, we provide excellent products backed up by unbeatable service.
Your Next Step in Home Accessibility
Discover how the Aritco HomeLift Access can create safe, effortless movement throughout your home. Download the brochure for full details or speak to our team today to arrange a free consultation.
BOOK A FREE SURVEY
FAQs
Can I customise the finish? |
Yes. Options include Traffic White as standard or a full RAL colour palette, clear or tinted glazing, a choice of vinyl or Bolon flooring, and even DesignWall panels with Scandinavian artwork. |
Do I need a pit or machine room? |
No separate machine room is required. The Aritco HomeLift Access is fully self-contained. It can be recessed into a 50 mm pit for a flush finish, or installed directly onto the floor with a threshold or ramp where excavation is not possible, keeping building work to a minimum. |
Can a wheelchair and carer travel together? |
Yes. Larger platform sizes are available with capacities of 410 kg or 500 kg, making it possible for a wheelchair user and carer to travel together comfortably. The 500 kg options require a three-phase power supply but provide the greatest internal space and lifting capacity for shared journeys. |
How does the alarm and phone system work? |
A telephone handset is supplied as standard which can either be connected to a GSM with a SIM card, or in areas of poor signal, using a digital line via the router. As an option the phone can be replaced with an auto-dialler that can be pre-programmed with up to five numbers, automatically cycling through them if the first goes unanswered. The auto-dialler is activated by depressing the alarm button for 10 seconds. An external alarm sounder is fitted for added safety. |
What happens in a power cut? |
The lift is fitted with battery-operated emergency lowering. If mains power fails, the system ensures the platform can be driven safely to the nearest floor. From inside, a user simply continues to press the button, and lift will descend to the next floor. With external assistance the lift can be driven up or down to the nearest floor. On arrival, the lift goes out of service until the power is restored. A Battery Guard protects charge levels so that power is always available when needed, giving peace of mind during unexpected outages. |
Can it be installed outdoors? |
Yes. The HomeLift Access is available in an outdoor version with C5-rated guide rails for corrosion protection. These models require a roof and ventilation fans as standard, with a canopy to shield doors and an optional heater for cold weather. Note: These are only suitable where the lift serves an external to external environment. |
