Battery-Backed Operation
Battery-backed travel
during power cuts
Weather-Resistant Design
IP54 rated, with internal
component protection
No Pit Needed

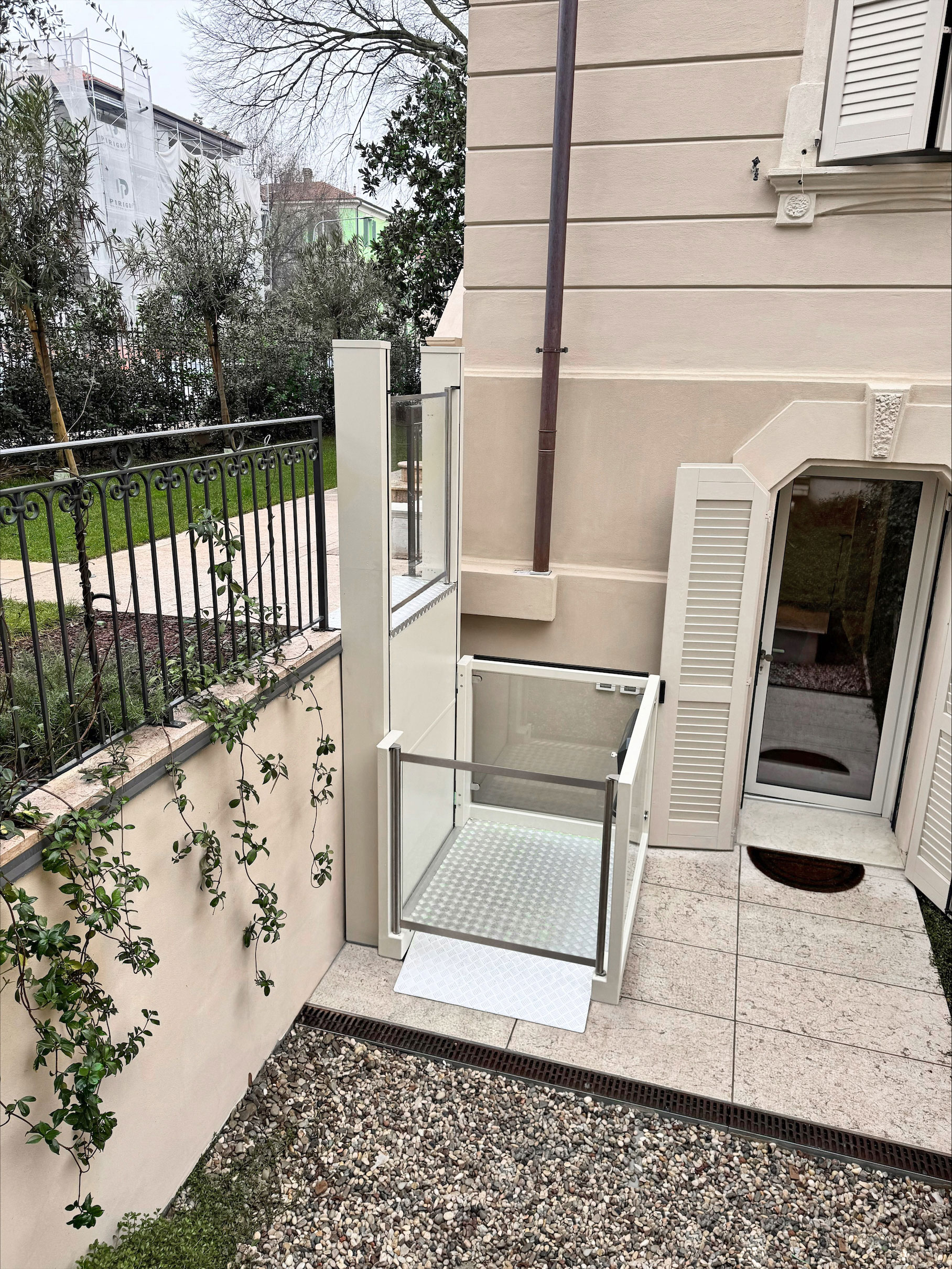

Self-aligning ramp for
level access
Up to 3m* Travel
Ideal for private and
public entrances

Why Customers Choose the UnaPorte® Platform Step Lift

The UnaPorte® is a trusted choice for homes, public buildings, clubs, and community spaces where a compact and reliable lifting solution is needed. Its self-aligning ramp removes the need for a pit, making it ideal where structural work or long ramps aren’t practical. With push-button platform controls, a clear graphical display, and rapid installation, the UnaPorte® offers a user-friendly way to achieve level access up to 3 metres*.

GET A QUOTE TODAY

Performance & Dimensions




Platform Sizes

1100 mm × 1400 mm (standard platform only)

Load Capacity

385 kg

Travel Height

600 mm – 3000 mm*

Speed

Up to 9 m/min (0.15 m/s)

Space Required

1333 mm × 1690 mm (plus all necessary clearances to comply with BS 6440)

Installation & Maintenance

The UnaPorte® is designed for rapid, low-disruption installation, making it one of the simplest step lifts to integrate into existing buildings. Thanks to its self-aligning access ramp, no pit is required, and most installations can be completed within two working days. The split-rail system allows the lift to be transported through tight internal spaces without cranes for heights up to 3 metres*, making retrofitting straightforward in both residential and public environments.

Ongoing maintenance is equally convenient. The lift offers easy technician access, and its robust construction keeps servicing requirements low.

Technical Overview




Type

Vertical platform step lift (UnaPorte®) for internal/external

Power Supply

220–240 V, 1-phase , 16 A

Battery Operation

Battery-powered travel allows continued operation during power cuts (with automatic shut-down to preserve battery life)

Travel Height

Up to 3 metres*

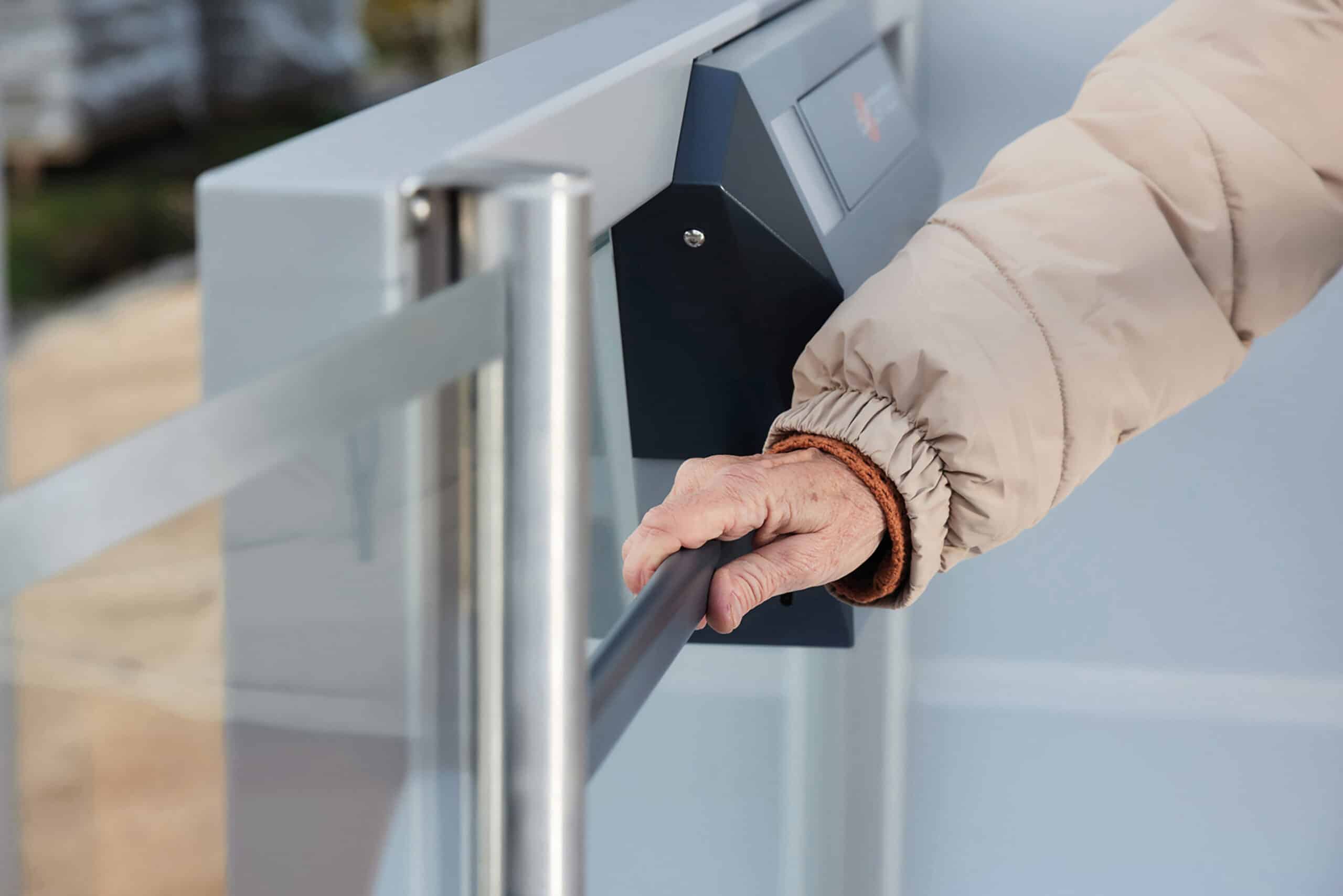

Controls

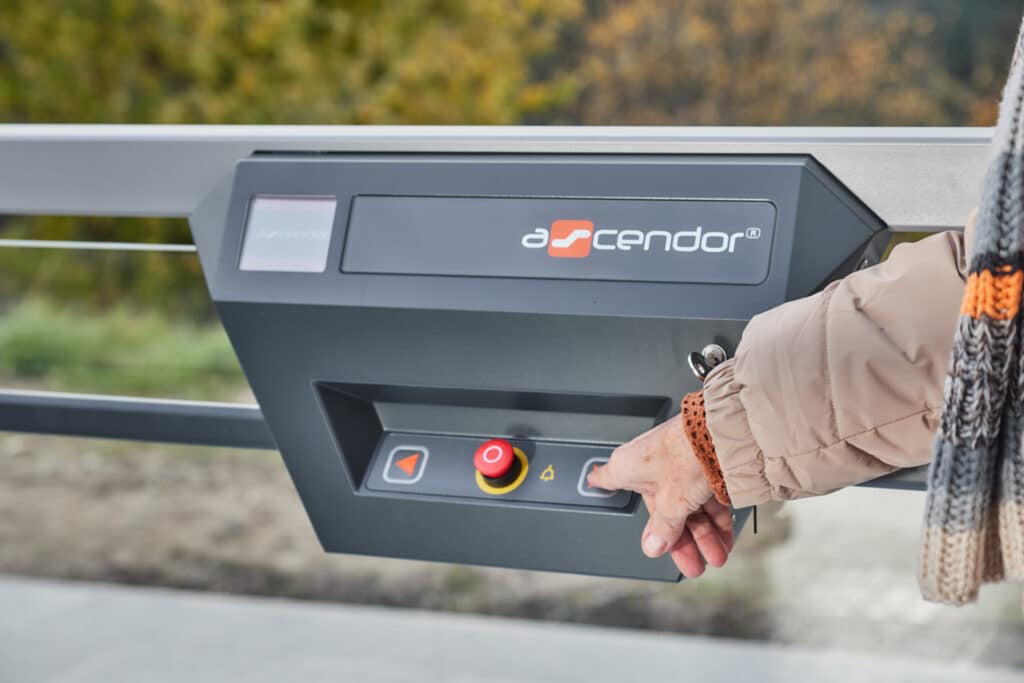

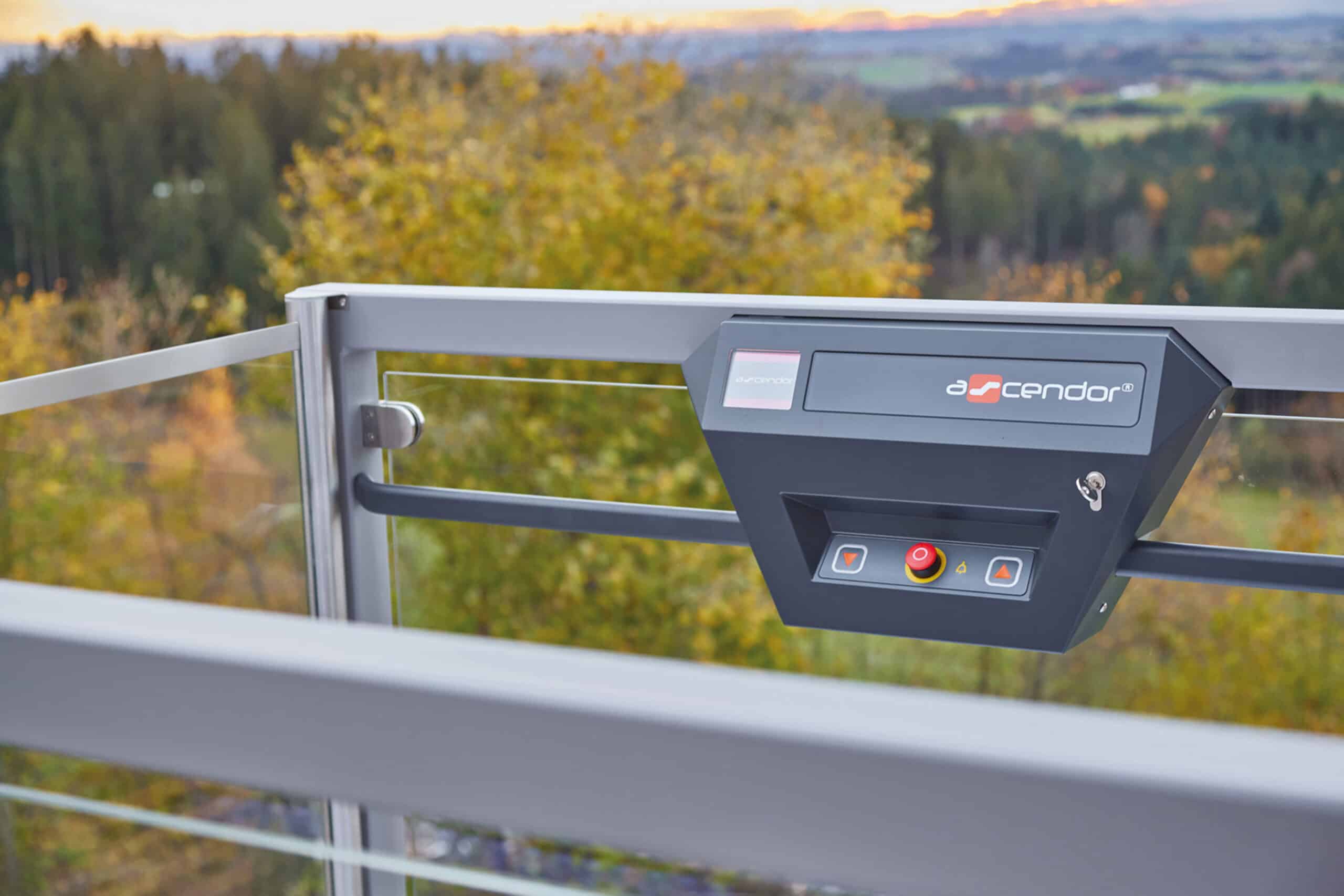

Push-button platform controls; wireless remote call stations

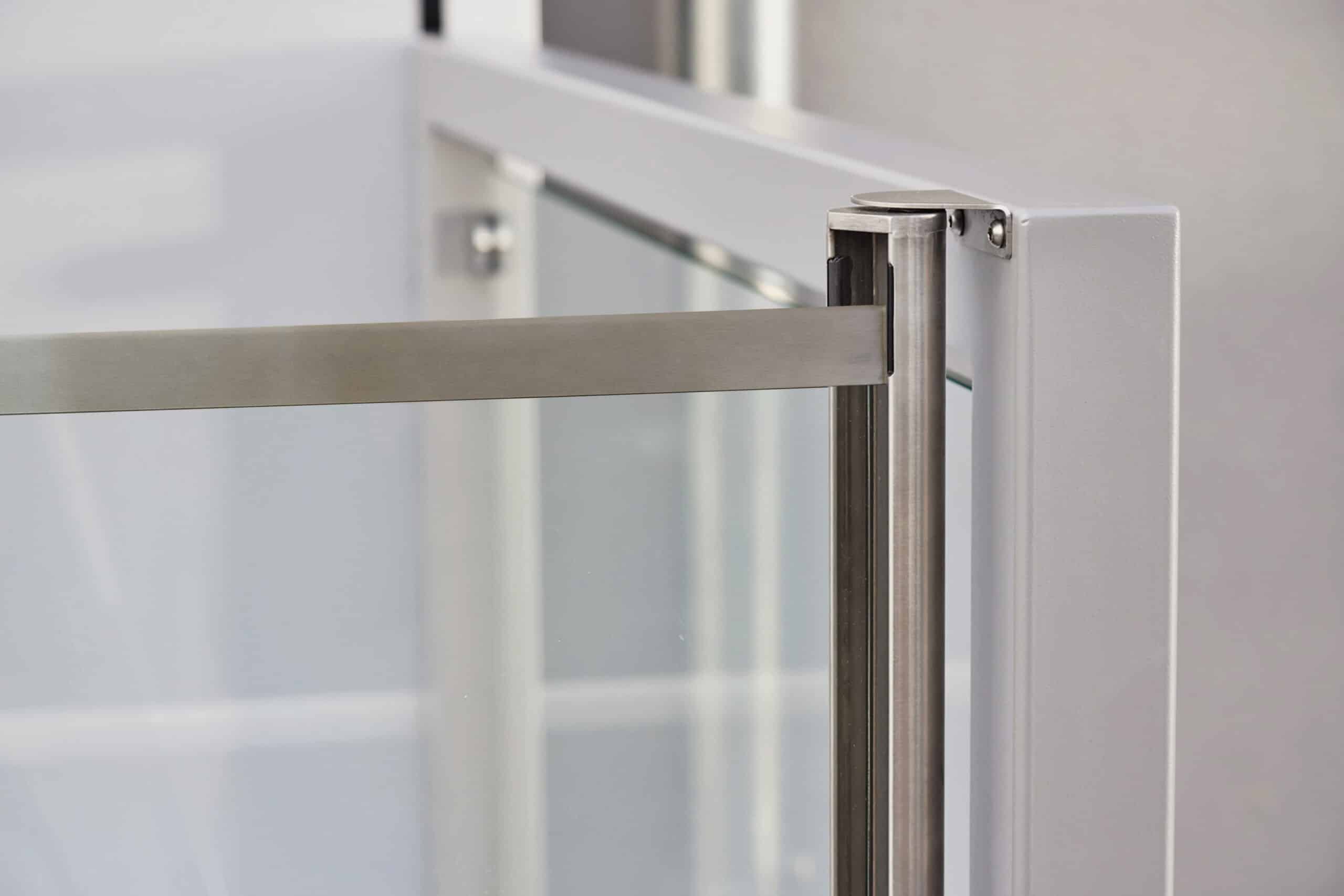

Doors

Frameless glass door; optional automatic door operators

Emergency Systems

Electrical emergency lowering; 4G GSM auto dialler emergency call system

Safety Gear

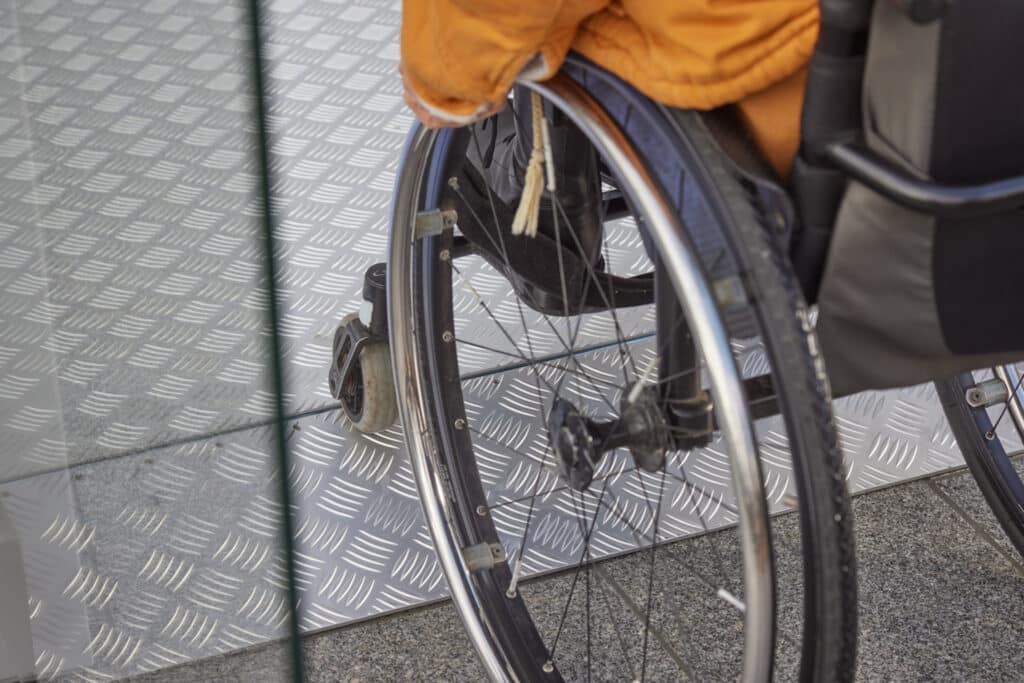

Anti-slip anodised aluminium platform surface

Protection Rating

IP54 rated, with internal components protected from dust and moisture

Environment

Residential or public settings (internal/external)

Warranty & Aftercare

The UnaPorte® Platform Step Lift is supported by Gartec’s nationwide team of experienced lift engineers, ensuring dependable performance long after installation. We offer planned maintenance options to suit different environments, along with responsive technical support whenever it’s needed.

With robust components and low-maintenance design, the lift is built for long-term reliability, and our aftercare ensures it continues to operate safely and in line with regulatory expectations.

Customisation Choices




Lighting

Optional LED RGB lighting

Flooring

Anti-slip floor surface as standard

Door Variants

Tinted glazing and configurable door insulation

Colours

Standard metallic grey + aluminium; custom finishes available for landing-door variants

Communication

Voice output; GSM auto-dialler

Automation & Monitoring

Automatic gate operators

Power Enhancements

Automatic emergency power supply

Ready to Plan Your Step Lift Installation?

Speak to our team for guidance on site assessments, retrofitting options, external configurations, and choosing the right door setup for your project. We’ll help you determine the best layout and specifications for a compliant installation.

BOOK A FREE SURVEY

We had a limited budget and Gartec worked out the very best option and price for us, they ensured we got the correct people involved regarding the design of the hole for the lift to travel through, and we duly placed the order. We had some misgivings about what we ordered as we were concerned about how it would look when it was installed and how obtrusive it would be, indeed we decided to amend the order so the lift had glass sides and wow! How glad we are that we did. The communication was first class all through and the aftercare has been very good.

I examined the market for a suitable lift for our premises, and Gartec had a lift that would fit into our small bar area and would not be too obtrusive, hence making contact and requesting someone visit to look at the site and advise on the best option for us, we are a grade 2 listed building and were having problems getting the planning permission for the lift to be installed where it would serve us best, Gartec made contact and arranged to visit us. Gartec was very professional and most helpful, and much more interested in getting it right for us than any of the other suppliers.

The cricket club is currently being used as a COVID vaccination centre and the lift is essential for those of limited mobility. Hence it was important to get the work done as soon as possible and on a day when the centre wasn’t in use.  We’re very grateful for the swift response from Gartec, the service engineer was also very competent and helpful.


Plymouth Cricket Club

“We turned to Gartec, and their innovative moving floor design. It was an attractive and successful option taking only 6 days to fit. The safety features include a remote lock and a Smart app operation from an iPhone, so parents can ensure no trapped fingers  or ‘junior joyriding’ – perfect for a family house. We have been impressed with both the product and professional installation, and would certainly consider Gartec again for another Octagon home.”


Anton Dummer, Octagon Developments

“Both our Architect and Building Manager found Gartec Home professional, organised and proactive, and the installation process went smoothly. All the people my husband and I have dealt with have been helpful, and any queries dealt with quickly. The end result is totally integral to the build and reflects the modern architectural style.”


Hazel Coomber, Brentwood

“I would like to say that everyone at Gartec has been very helpful. The lift is my lifeline and enables me to live here.”


Barbara, Stourbridge

“The Gartec Home team were friendly and knowledgeable, they kept me informed and even tidied everything up at the end!”


Mary Jones, Abingdon

“Gartec offered a quick turnaround using a high-quality lift solution. It was important to have lifts that would complement the design and quality of the rest of the houses. The Gartec lifts offered this and only required a short installation period carried out by two friendly engineers. I am pleased with the overall look of the lifts installed and they will contribute to the townhouses being desirable to a bigger market. We look forward to working together again.”


Keith Perfect, Bellwood Homes

FAQs




Do I need planning permission to install the UnaPorte® platform step lift?

In most residential settings, the UnaPorte® can be installed under permitted development if it’s not structurally altering the property. Commercial or public buildings may require approval depending on access routes and exterior changes.

Planning requirements vary by location and should be confirmed with local authorities. Our team can advise during an initial assessment.

How weather-resistant is the UnaPorte® outdoors?

The lift carries an IP54 protection rating, with internal components protected from dust and moisture when installed in accordance with manufacturer guidance.

How loud is the lift during operation?

The UnaPorte® is designed for smooth operation. It is generally quieter than traditional platform lifts and suitable for both residential and public internal environments.

What electrical requirements are needed for installation?

The lift operates on a standard 220–240 V, 1-phase, 16A supply. Because travel between stops is battery-powered, mains usage is minimal, and charging occurs automatically when the lift is idle.

How much space is needed around the lift for access and maintenance?

The UnaPorte® has a compact footprint, and maintenance access is built into the lifting column and drive housing. Only minimal clearance is required at each landing to allow the door to open safely and provide suitable manoeuvring space for wheelchair users.

Can the lift be retrofitted into existing buildings?

Yes, retrofitting is one of the UnaPorte®’s core advantages. With no pit requirement, split rails for easy transport, and installation often completed within two days, it can be added to existing properties with minimal disruption.

Is the platform suitable for mobility scooters?

The platform size and load capacity may be suitable for some mobility scooters. Our team can confirm suitability by checking your scooter length, turning radius, and safe boarding space during a site survey.

*The UnaPorte® can provide travel up to 3 metres in residential settings. In commercial or public environments, vertical travel above 2 metres requires installation within a lift-way enclosure (shaft) to meet current safety standards. Open platform step lifts are therefore generally limited to 2 metres in these settings.

Where 2–3 metres of travel is proposed for commercial use, approval must be obtained from the relevant Building Control Officer and the building’s insurance inspector prior to installation.
