The Aritco HomeLift Compact platform lift is our most compact home lift, bringing all the benefits of an elevator in your home, whilst only taking up the space of an airing cupboard or wardrobe – ideal for a small home access solution. With no major building works and just 3 days to fully install the modular structure, the Aritco HomeLift Compact is a simple and easy addition.
Product Pages Enquiry Form
Recently launched following the success of our previous model the Aritco 4000, the Aritco HomeLift Compact is one of the most compact, modern and sleek home platform lifts on the market, it’s a simple, cost effective solution for access in any home, now with a smaller footprint it can take up as little space as a wardrobe or cupboard. The Aritco HomeLift Compact uses our screw & nut system – quiet, efficient and safe. Choose from a huge selection of finishes and colours.
The full height wall can also be delivered with a DesignWall instead of a mirror. It´s a design feature which allows the customer to personalise the lift with artwork, creating a piece of art within their home. The DesignWall is available with eight different artworks, created by Scandinavian designers and artists. The artwork is placed behind a glass panel.
You can customize your Aritco HomeLift Access with a lot of options, such as colours, DesignWalls, floorings, etc. Below you can try design combinations of DesignWalls and colors to find a look that suits your preferences. If you want to try more combinations, visit our lift configurator LiftGuide.
Abu Dhabi
Shanghai
Berlin
Stockholm
Diagonal
Geometric Blue
Geometric Classic
Geometric Pink
Keywest
Mirror
Orange
Orientalic
Pink
Sheets
Skyline
Structure
Type of Lift |
Passenger enclosed platform lift intended for use in residential environments |
Compliance |
European Machine directive 2006/42/EC |
Drive System |
Patented screw/nut system |
Rated Speed |
Max 0,15m/s |
Travel Height |
600mm – 15,000mm |
No. Floors |
Max. 6 |
Environment |
Internal |

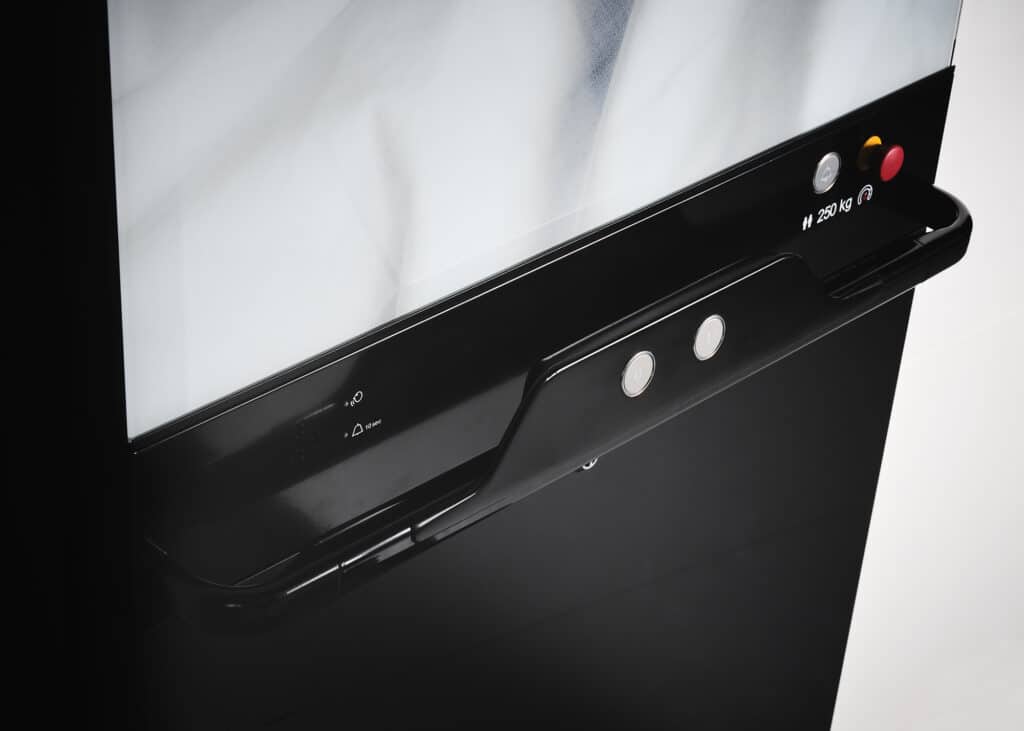

Platform Controls |
Hold to run, the destination button must be kept pressed down during the whole ride |
Control Voltage |
24V |
Motor |
2.2kW |
Power Supply |
1-phase 230V 50 Hz 20 A type C MCB |
|
|
We are continually working hard to reduce our carbon emissions and use sustainable materials.
we use
95
%
recycled and recyclable materials
our motor is
2.2
kW
This uses less energy than a standard domestic kettle or hairdryer
a reduction of up to
66
%
Of annual power usage and cost compared to a passenger lift in the same environment
an annual reduction of up to
75
% CO2
is seen through the production of the annual power used.
Vertical platform lifts are contained within a shaft. This shaft has guide rails along two corners of the shaft which help to guide the carrier, which is generally an L shaped platform attached to a mast. When using an open platform lift, the walls remain in the same place as the platform raises or lowers.
There is a wide range of electric, hydraulic, and mechanical platform lifts, including enclosed cabin lifts, industrial vertical platform lifts, and even hidden platform lifts. Cabin platform lifts work in the same way as normal platform lifts but, rather than having an L shaped carrier, the platform is contained within a box to give the feel of a conventional lift.
In order to use an open platform lift, applying continuous pressure to the up or down buttons will allow the user to reach their destination. From the outside, using a single touch button will call the lift to the floor. For enclosed cabin lifts, rather than having to apply continuous pressure, a single touch button will be found inside that can be used to bring the user to the correct floor.
Using steel, aluminium, glass and as little plastic as possible allows for recyclability of almost all the materials that are needed to manufacture Gartec lifts, with up to 92% of the materials used already from recycled and sustainable sources. All that is left which is non-recyclable are parts of the electrical cable system and the battery. Aritco, our parent company are constantly developing our lifts and as battery technology changes, our lifts will be developed to incorporate recyclable batteries.
With rigorous development to achieve maximum recyclability and the forward thinking on materials, manufacturing processes and new technology we are always looking to provide the most eco-friendly lift solutions. We are proud that every step taken from Design to Installation, sustainability and energy efficiency has been factored into the process.
When considering energy efficiency in your home, Gartec lifts are powered by a 2.2kw motor which uses less energy than a standard domestic kettle or hairdryer. Similarly, the low-energy LED lighting and display components all contribute to a more sustainable and greener solution. View our energy-efficiency brochure for more information.
