Aritco HomeLift Compact
The Aritco HomeLift Compact is our smallest home lift, designed to fit where space is limited. With a footprint similar to a wardrobe, it provides access across up to six stops without the need for a machine room. Available in three platform sizes, it installs in just a few days with minimal building work.
Lift Enquiry
Product Pages Enquiry Form
low running costs.
and alarm features
as standard.
typically completed
in three days.
wardrobe or
cupboard.
Why Homeowners Choose the Aritco HomeLift Compact
The Aritco HomeLift Compact is designed for homes where space is at a premium, ideal for small houses, townhouses, and multi-level living where a full-sized lift isn’t practical.
Homeowners choose the Aritco HomeLift Compact to future-proof their properties and make every floor accessible, whether for daily convenience or to support independence for family and guests.
Installation requires only a 50 mm pit or a small ramp, with no overrun or machine room needed. Doors can be fitted on up to three sides, giving flexibility for layouts and interior design, and with minimal building work and a typical three-day installation, the Aritco HomeLift Compact offers a simple way to add long-term use and value to the home.
Custom Options
The Aritco HomeLift Compact is designed with a wide choice of finishes and materials. With the LiftGuide tool, you can explore finishes and layouts in advance, helping you design a lift that suits your home perfectly.
DesignWall Options |
Standard mirror or artwork panel from Scandinavian designers |
Lift Colours |
Traffic White, Jet Black, Anthracite Grey; optional full RAL palette |
Glazing Tints |
Clear glass standard; tinted glass available |
Internal DesignPanels |
Acoustic PET fibre panels with Ecophon backing for aesthetic and sound enhancement |
Flooring Options |
Standard vinyl, optional Bolon, or own flooring up to 3 mm |
Installing Your HomeLift Compact
This model can be set into a 50 mm pit for a flush finish, or installed directly onto the floor with a threshold and optional ramp. As a modular, self-contained unit, no separate machine room or major building works are required, and most installations are completed in around three days.
Flexibility is built in, with the option of single or double glass doors, and doors positioned on up to three different sides of the shaft. This allows the Aritco HomeLift Compact to adapt to smaller homes and multi-level properties.
User Controls and Protection
The Aritco HomeLift Compact is equipped with straightforward, reliable controls with robust safety systems, making it both practical and reassuring for everyday use.

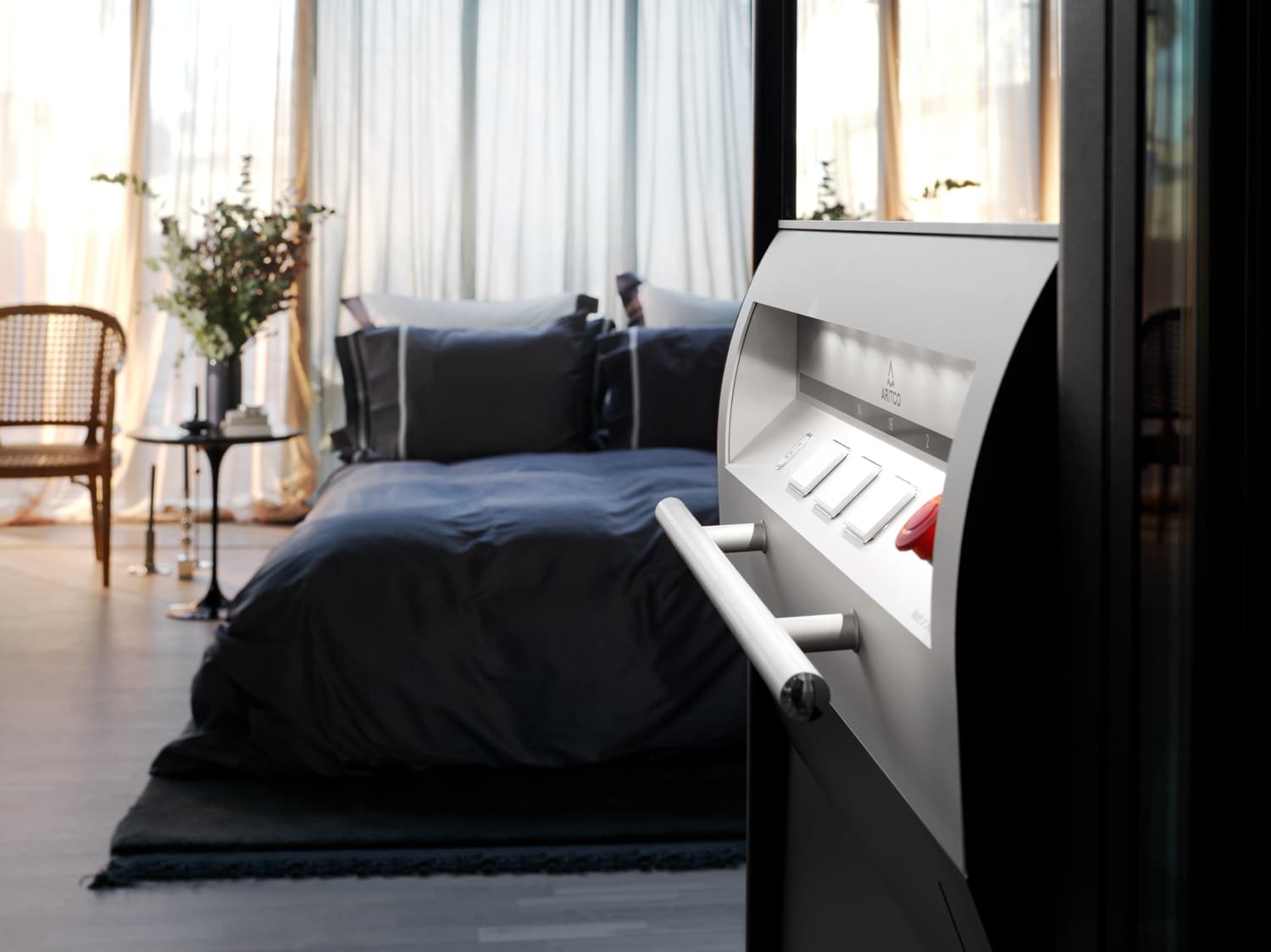

Control Panel |
Integrated handrail, destination buttons, emergency stop, alarm button |
App Features |
Lift status, usage data, lift info, floor lock settings |
SmartFleet |
Remote monitoring, alarm notifications, live status |
Communications |
Telephone handset standard; Optional for an auto-dialler (Can be programmed with up to 5 numbers); Connectivity is made via a GSM with a SIM or hardwired via a digital line to the router (VoIP system) |
Emergency Lowering |
Battery-powered lowering during power cut |
Safety Edges |
Stops lift if obstruction is detected |
Door Locking |
Electrically operated deadlock system |
Key Switch |
Optional lock to restrict platform use |
External Sounder |
Optional loud alarm triggered outside the lift |
Platform Controls |
Continuous pressure needed for platform travel, giving users complete control over operation |
Optional Additions
The Aritco HomeLift Compact comes with a wide range of options. Homeowners can choose between steel or glass shaft panels. Glazing is offered in clear glass (JT0) or tinted glass (JT16) for both the shaft and doors. The lift structure itself, doors and the platform console panel can be finished in Traffic White, Jet Black, Anthracite Grey as standard, or any RAL colour on request.
For the carrier, you can choose between the standard integrated mirror or for a more expressive finish, the mirror can be substituted with a DesignWall panel with artwork from Scandinavian designers, turning the lift into a statement feature. Flooring options range from practical vinyl to designer Bolon. A console Footbox option adds 80 mm depth to the platform.
Landing call stations are typically sited in the wall to the side of the lift, either flush or surface-mounted, with backlit arrival indicators for ease of use. For extra convenience, an automatic door opener can be fitted, and door handles are available in Traffic White, Jet Black, or anodic Natura finishes.
These additions make it possible to adapt the lift precisely to its setting and personal preferences.
Technical Specifications
Type |
Passenger enclosed platform lift for residential use |
Compliance |
Machinery Directive 2006/42/EC, EN 81-41 |
Drive System |
Patented screw and nut system |
Rated Speed |
Max 0.15 m/s |
Travel Height |
1600–15,000 mm |
Number of Stops |
Up to 6 |
Number of Doors |
Up to 6 (max. 2 per floor) |
Power Supply |
1-phase 230 V, 50 Hz, 20 A type C MCB |
Motor |
2.2 kW |
Top Height |
Minimum 2,248 mm |
Entry |
One, two, or three sides |
Enclosure |
Solid panels or optional glass panels |
Platform Controls |
Hold-to-run (button must be pressed continuously) |
Landing Controls |
One-touch call operation |
Rated Load |
250 kg |
Platform Sizes |
805 × 580 mm – Structural opening 910 × 870 mm 805 × 880 mm – Structural opening 910 × 1170 mm 805 × 1080 mm – Structural opening 910/935/960 × 1370 mm (dependent on door configuration) |
Smart Connectivity
The Aritco HomeLift Compact is equipped with connected technology to support safe, reliable everyday use. Through the SmartApp, homeowners can view the lift’s status, check usage statistics, access key information, and apply floor locks for added control. This makes it easy to manage the lift directly from a phone or tablet.
For long-term reassurance, the lift also connects to Aritco SmartFleet . This provides 24-hour monitoring, with real-time data on the lifts status, alarm notifications, service indicator and a digital maintenance report. Remote troubleshooting can be carried out to minimise downtime. Together, these features give both users and carers greater confidence in the lift’s operation.
Why Choose Gartec for Compact Home Access
The Aritco HomeLift Compact is supplied with a 5-year parts warranty, and the screw and nut assembly is covered for 10 years, reflecting the reliability of its design.
Our nationwide team of engineers provide ongoing servicing and responsive support, with maintenance plans tailored to different usage levels and budgets. This ensures your lift continues to perform safely and efficiently year after year.
With decades of industry knowledge and a reputation built on customer trust, Gartec offers dependable aftercare and professional support to match the quality of the lift itself.
Ready to Experience Compact Accessibility?
Discover how the Aritco HomeLift Compact could fit into your home. Download the brochure for full details, or speak to our team about sizes, door openings, and finish options for smaller spaces.
BOOK A FREE SURVEY
FAQs
How small is the footprint? |
The Aritco HomeLift Compact is available in three sizes: 805 × 580 mm, 805 × 880 mm, and 805 × 1080 mm. Each has a rated load of 250 kg and requires only a small structural opening, making it one of the most space-efficient lifts available. |
Do I need a pit or machine room? |
No separate machine room is required. The lift can be set into a 50 mm pit for a flush fit, or installed directly onto the floor with a small threshold and optional ramp. This flexibility helps simplify installation in most homes. |
How long does installation take? |
The modular structure of the Aritco HomeLift Compact allows for a quick installation, typically completed in around three days. Minimal building work is required, helping to keep disruption to a minimum and making it suitable for a wide range of properties. |
What are the door options? |
Doors can be positioned on up to three sides of the lift shaft, with the choice of single or double glass doors. An automatic opener is also available as an option, providing added convenience for homeowners. |
What communications are included? |
A telephone handset is supplied as standard which can either be connected to a GSM with a SIM card, or in areas of poor signal, using a digital line via the router. As an option the phone can be replaced with an auto-dialler that can be pre-programmed with up to five numbers, automatically cycling through them if the first goes unanswered. The auto-dialler is activated by depressing the alarm button for 10 seconds. An external alarm sounder is fitted for added safety. |
What happens in a power cut? |
The lift is fitted with battery-operated emergency lowering. If mains power fails, the system ensures the platform can descend safely to the nearest floor. From inside, a user simply continues to press the button, and the lift will descend to the next floor. With external assistance, the lift can be driven up or down to the nearest floor. On arrival, the lift goes out of service until the power is restored. A Battery Guard protects charge levels so that power is always available when needed, giving peace of mind during unexpected outages. |
