No head fixing required

Up to 500kg capacity

Shaft supplied with the lift

Glass or fire rated doors

Single press on landings

110mm pit

Solid RAL panels and glass panels optional

Constant pressure on internal controls

The ILS 500 High Capacity Platform Lift is a 500kg platform lift, suitable for passengers, wheelchair users and goods movement. Availability to carry 500kg up to 13m travel, with doors on up to three sides. Optional extras give you design freedom, including larger doorways for powered wheelchairs. No head fixing, no separate machine room and quick installation make the ILS 500 High Capacity Platform Lift ideal for most environments. The ILS 500 is ideal for showrooms, warehouses, offices with frequent goods movement. It can be used for up to 6-person passenger movement, so it is ideal for retail, care homes and healthcare.

Contact Us

Specification




Type of Lift

Passenger/ goods platform lift

Capacity

500kg

Compliance

EN81-41, Machinery Directive Compliant, Part M Compliant

Drive System

Screw and nut system with emergency battery backup

Rated Speed

Max 0,15m/s

Travel

Up to 13,000 mm

No. Floors

2-7

No. Doors per floor

Max. 2 doors per floor

Entry

One, two or three sides

Top Height

2300mm (minimum) no head fixing required

Platform Controls

Constant pressure operation

Landing Controls

Single press operation

Environment

Internal

Shaft

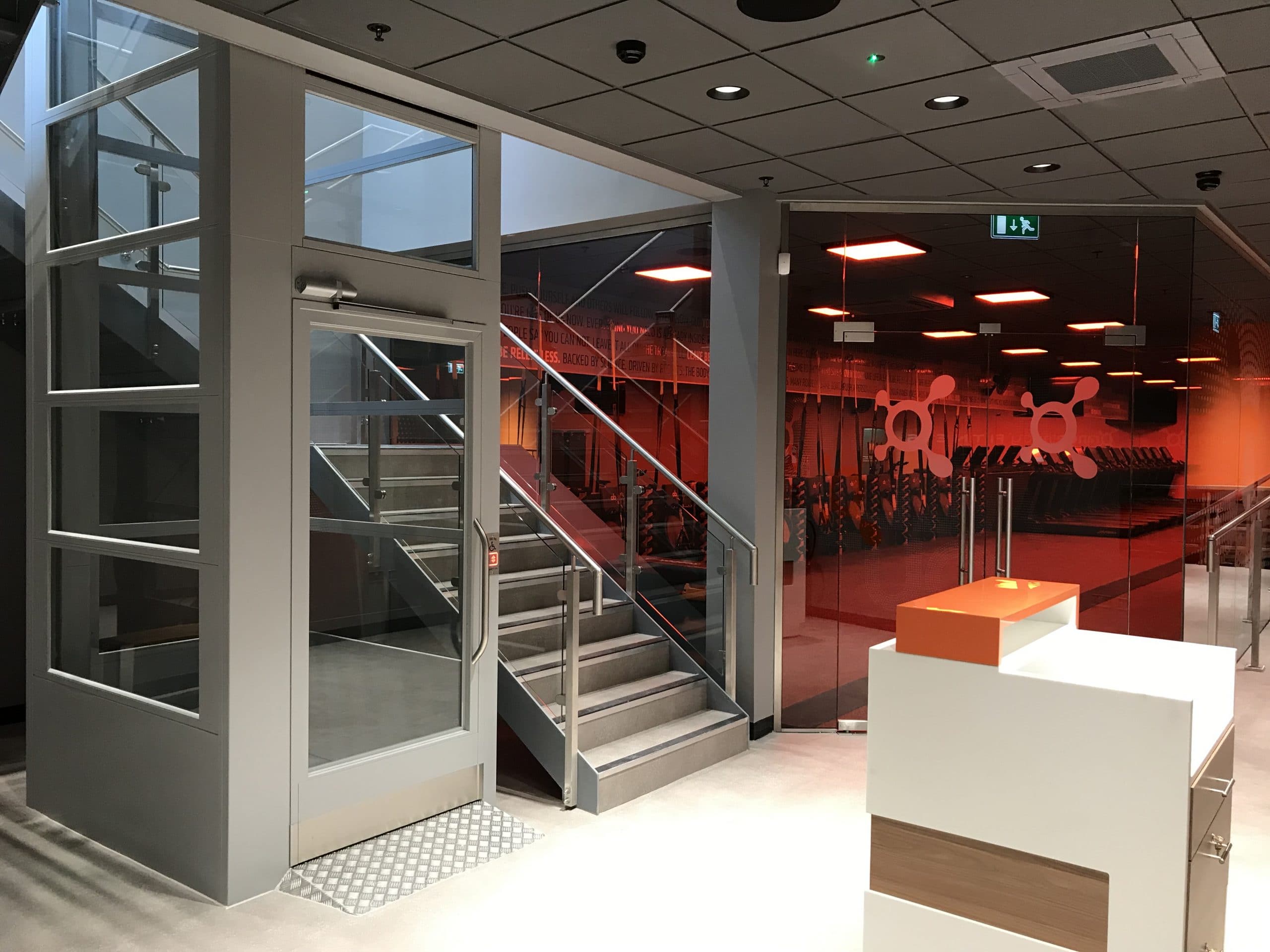

Supplied, self-supporting glass or solid panels

Power supply

400v, 3-phase, 20A, soft stop-start
240v, 1-phase, 20A, soft stop-start

Doors

GL Full height door as standard EI60 fire doors (optional), half height available (under 3000mm travel only)

A GREENER FUTURE

We are continually working hard to reduce our carbon emissions and use sustainable materials.


we use

95

%

recycled and recyclable materials

our motor is

2.2

kW

This uses less energy than a standard domestic kettle or hairdryer

a reduction of up to

66

%

Of annual power usage and cost compared to a passenger lift in the same environment

an annual reduction of up to

75

% CO2

is seen through the production of the annual power used.
