The Motala 2000 Range
The Motala 2000 is a versatile, space-saving solution ideal for commercial buildings. For those who prefer the feel of a traditional enclosed lift, the 2000 Cabin offers a premium alternative. Both models are energy-efficient, fast to install, and delivered with a self-supporting shaft for minimal building work.

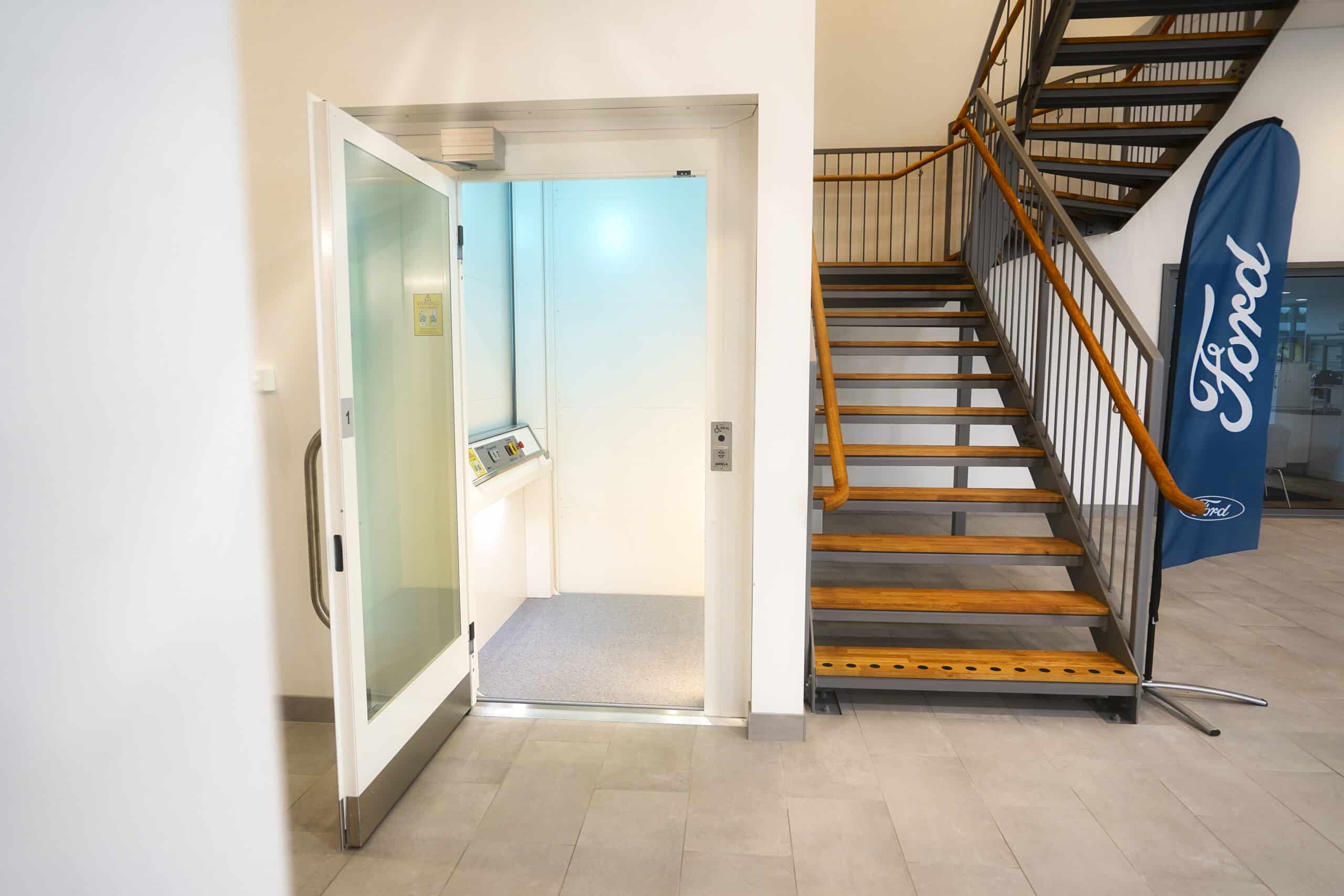

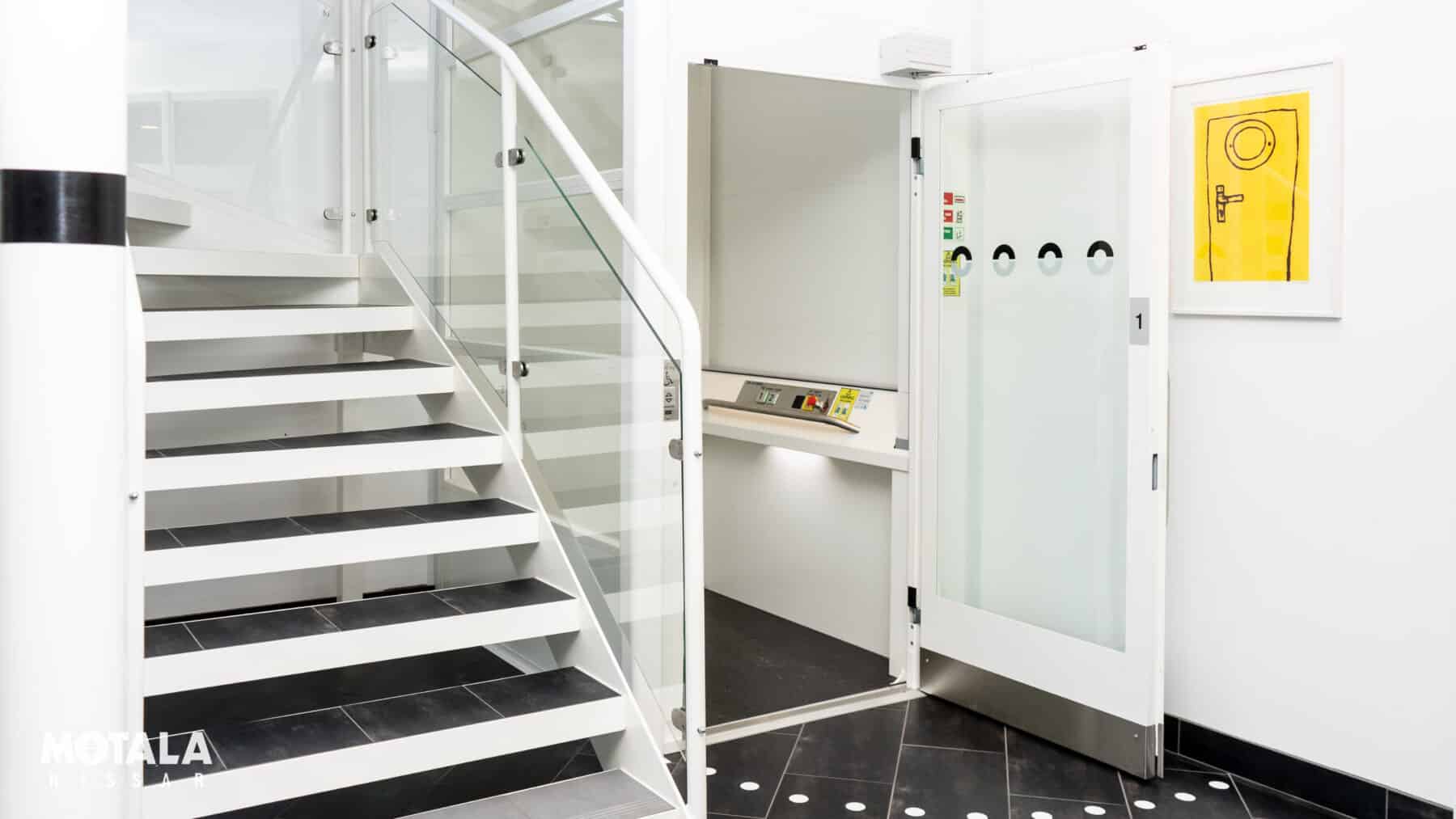

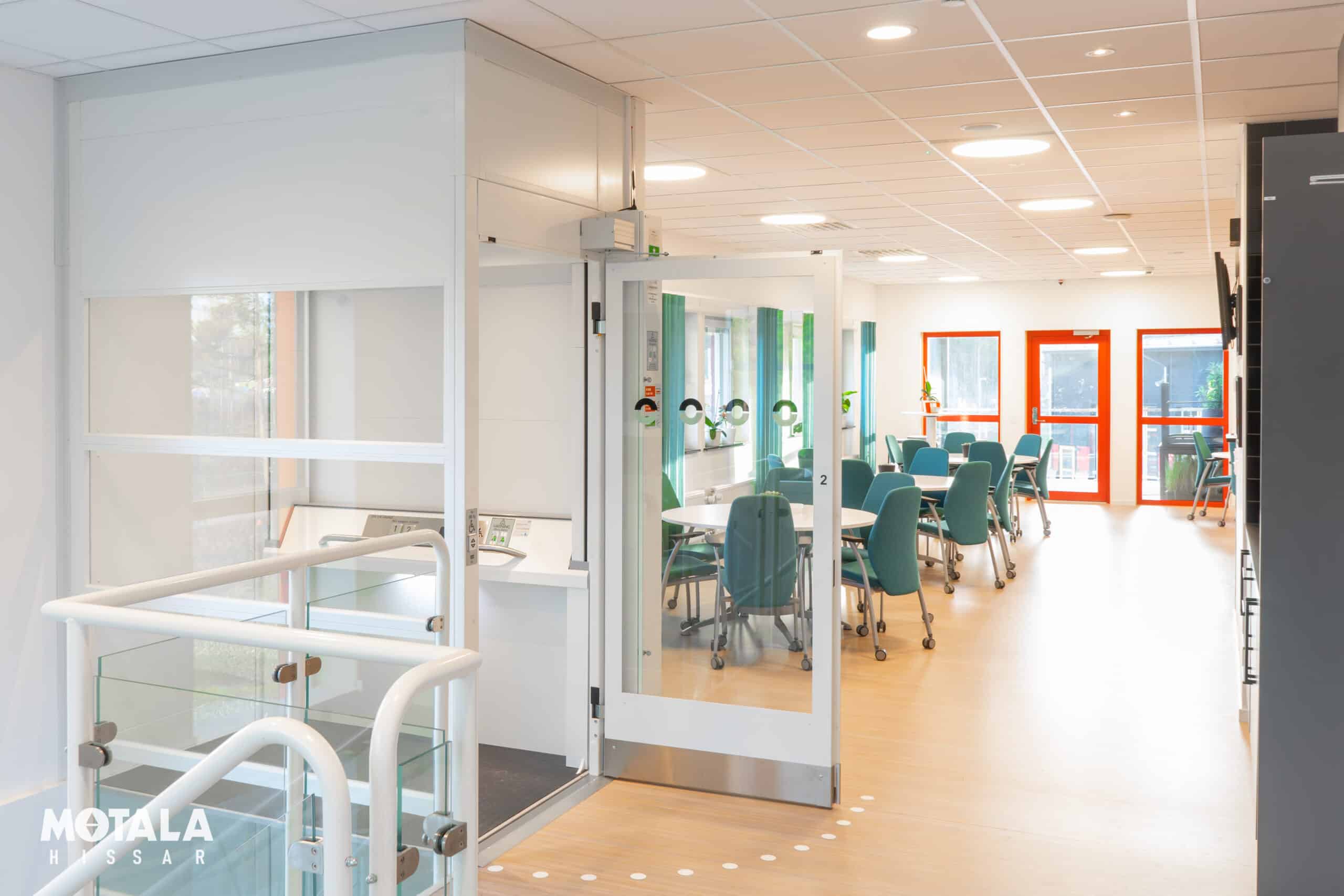

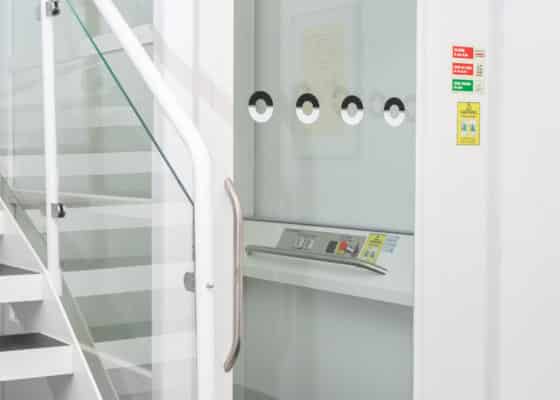

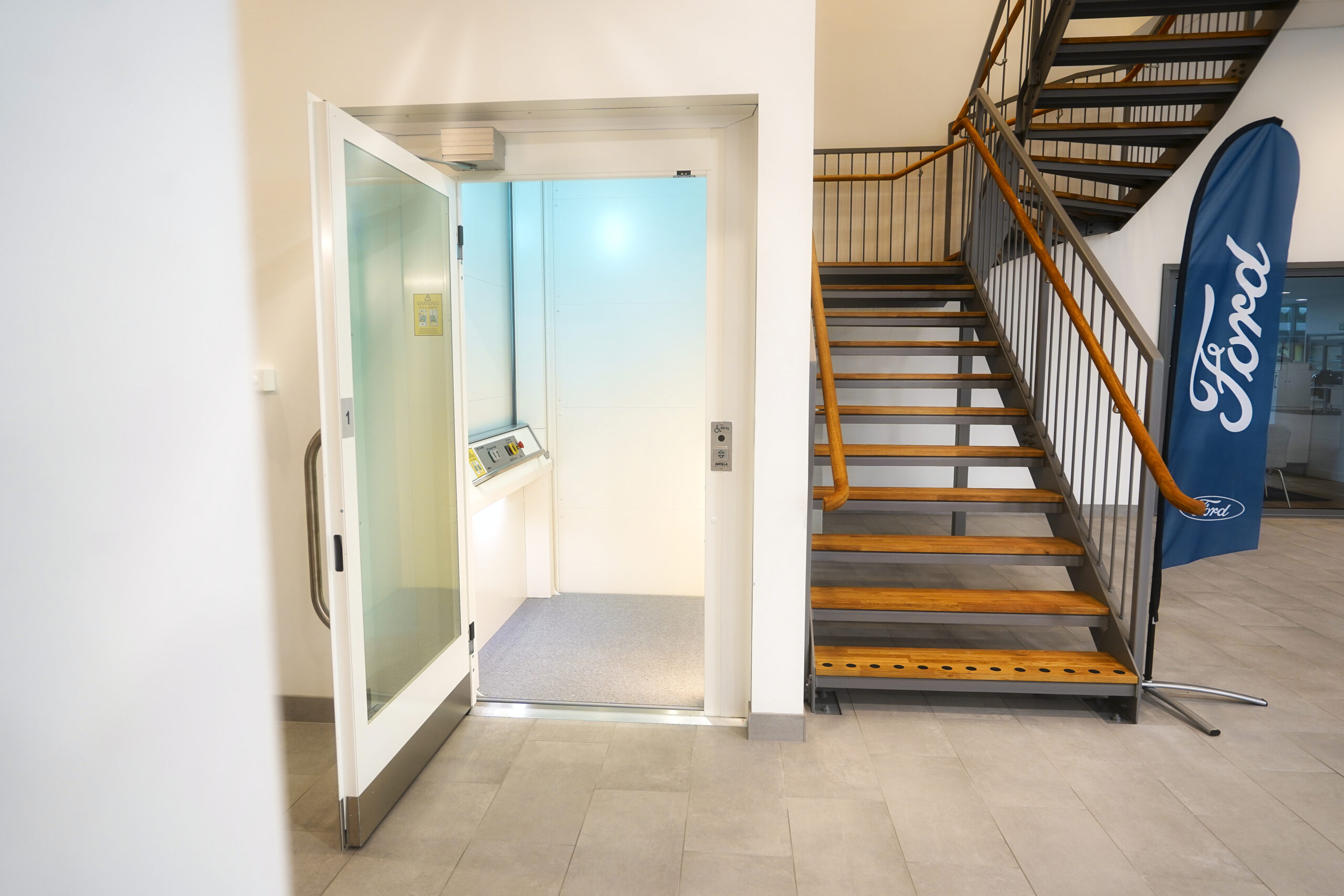

Motala 2000 Platform Lift
One of our most popular platform lifts – compact, flexible, and ideal for everyday access
The Motala 2000 Platform Lift is a robust, space-efficient solution for commercial environments needing reliable vertical transport. With up to 500kg capacity, multiple door configurations, and minimal structural requirements, it’s well-suited to offices, schools, healthcare facilities, and public buildings. Installed quickly with no machine room or shaft walls needed.
Supplied with a self-supporting shaft and compliant with EN81-41 and Machinery Directive 2006/42/EC.
- Max load: 500kg
- Travel: Up to 15m over 2–6 stops
- Motor: 0.75kW asynchronous, guided chain drive
- Pit: 60mm (or 0mm with ramp)
- Minimum headroom: 2200mm
- Platform sizes: Custom size options available

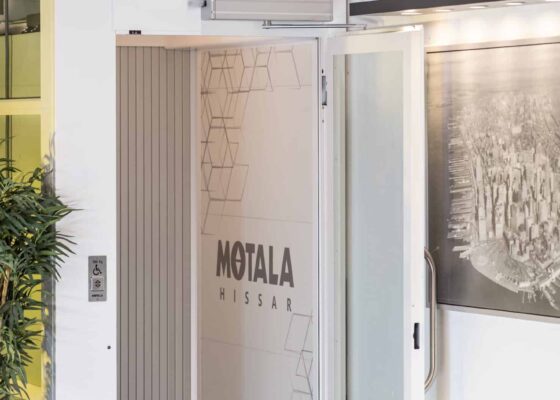

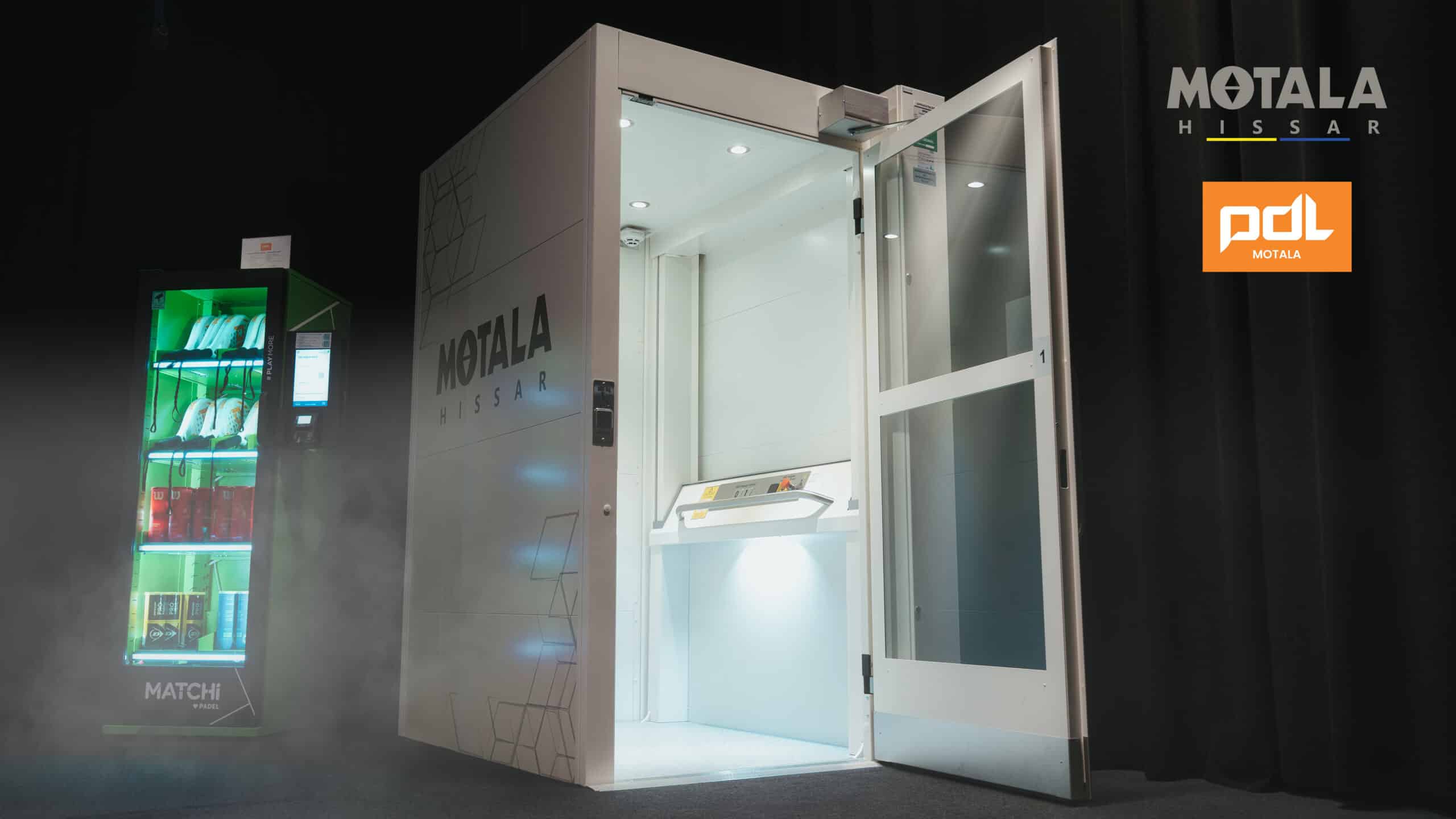

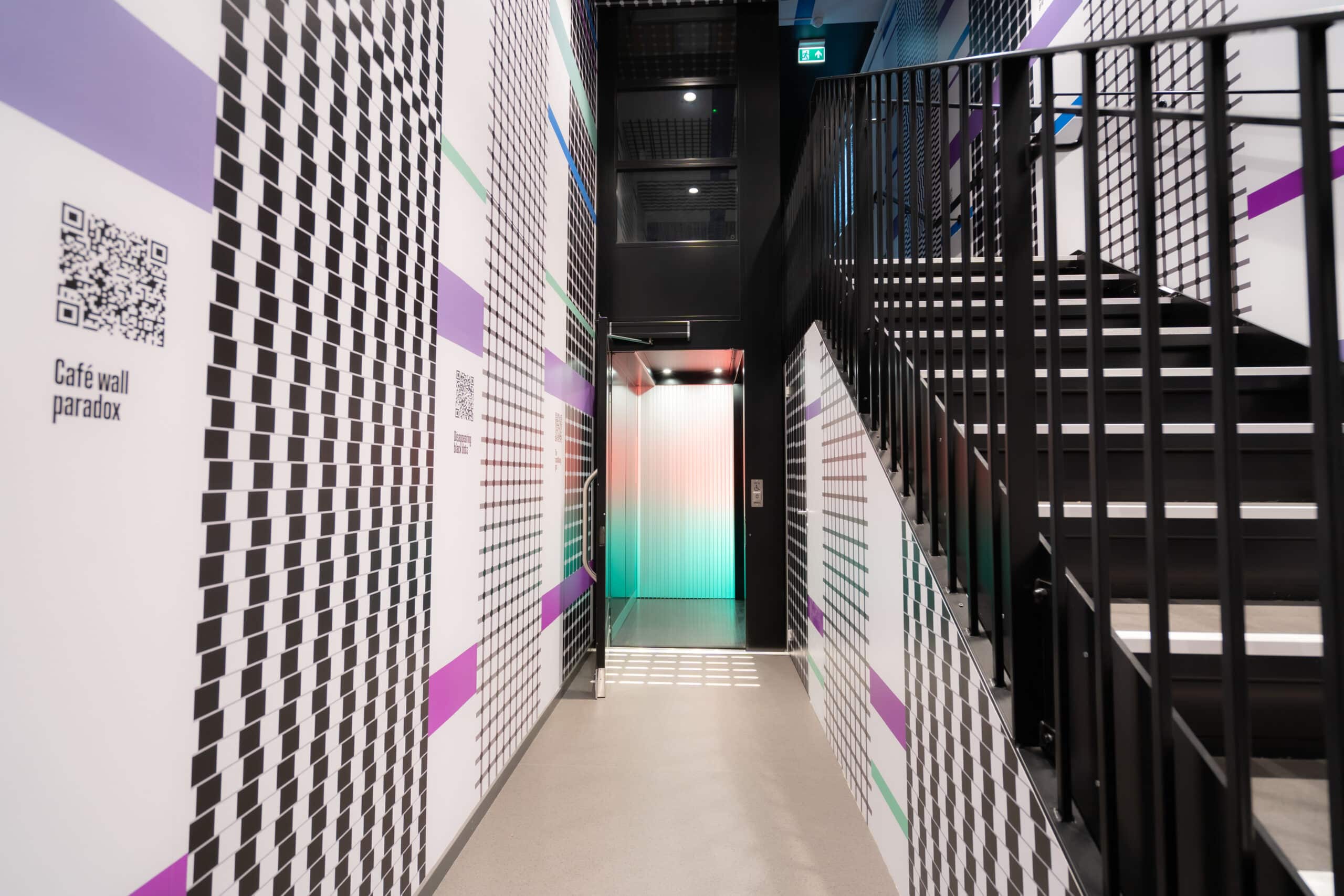

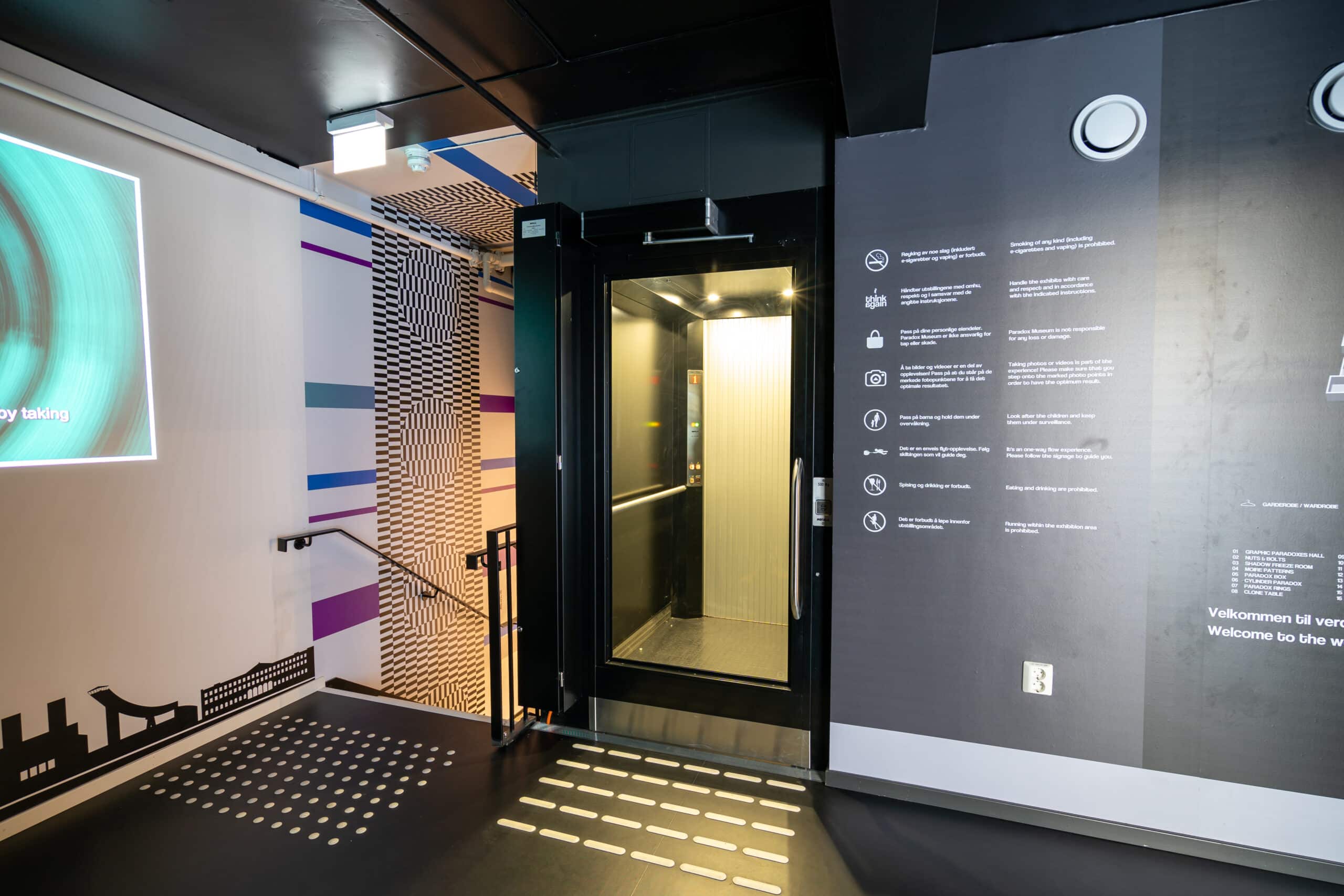

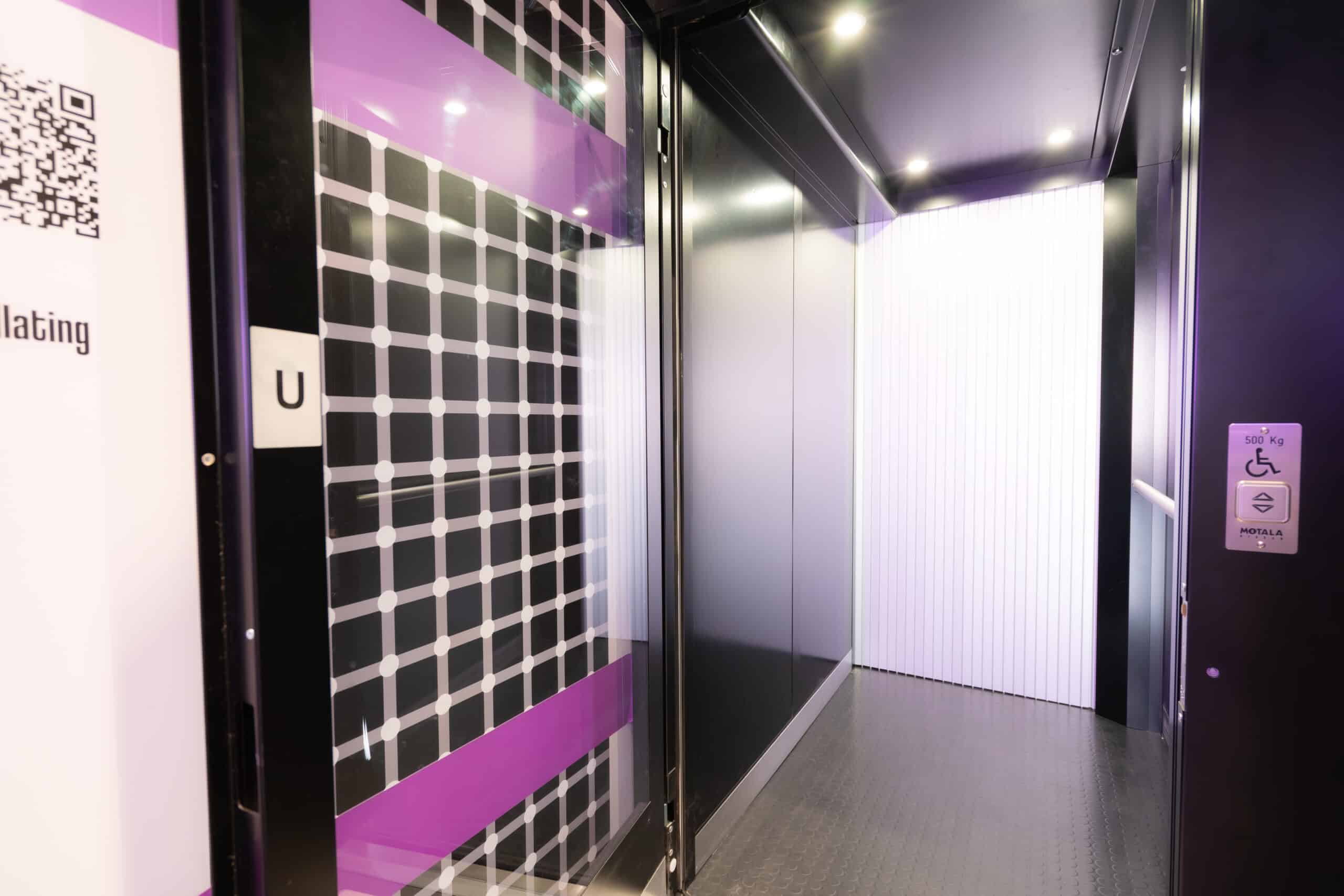

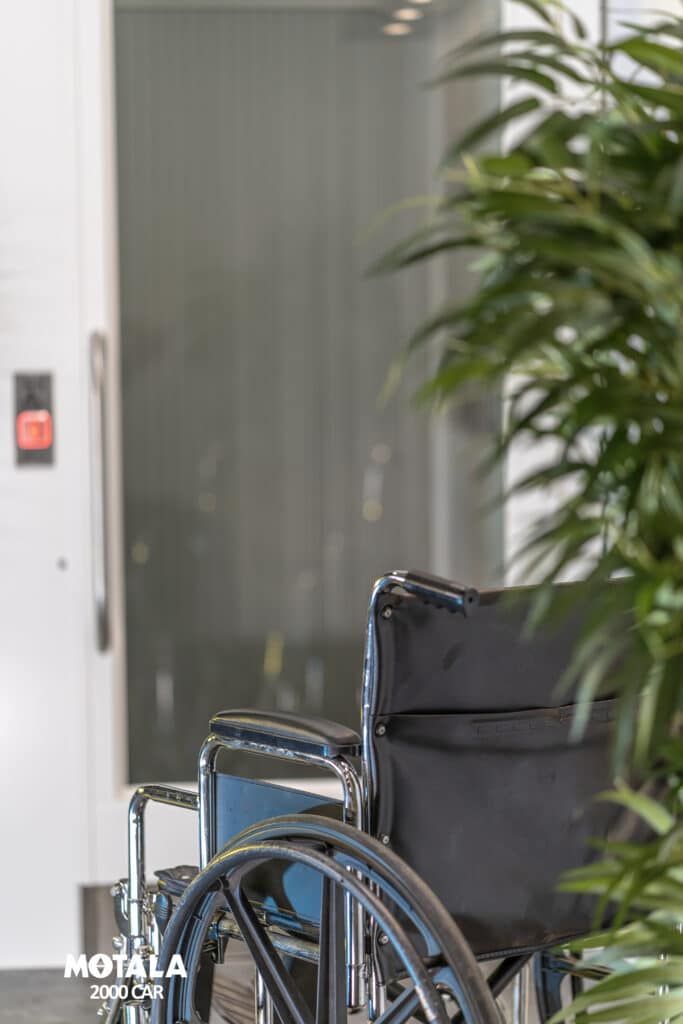

Motala 2000 Cabin Platform Lift
An enclosed cabin-style lift for added comfort in public settings
The Motala 2000 Cabin Platform Lift offers a more traditional passenger experience with a fully enclosed cabin, sliding door inside the cabin, and a swing door on the landing. It’s the ideal choice for commercial spaces prioritising user comfort and privacy – including healthcare centres, education buildings, and high-traffic public areas. Built with safety, simplicity, and compliance in mind.
Fully enclosed cabin with doors available on A or C sides only. One-touch controls inside the cabin, and certified to EN81-41 and Machinery Directive 2006/42/EC.
- Max load: 440kg
- Travel: Up to 15m, 2–6 landings
- Motor: 1.1kW asynchronous, guided chain drive
- Pit: 70mm (or 0mm with ramp)
- Minimum headroom: 2200mm
- Platform sizes: Fixed at 1100x1400mm or 1100x1600mm
Key Features at a Glance
The Motala 2000 and Cabin models are engineered for safe, efficient access in compact spaces. With a self-supporting shaft, fast installation, and low energy use, these lifts are ideal for public buildings. At a glance:
- Up to 500kg capacity: The platform model carries up to 500kg; the Cabin Platform Lift supports 440kg – ideal for passengers, wheelchairs, and light goods.
- Up to 6 stops: Provides reliable vertical access across multiple floors, with up to 15m travel distance.
- Compact footprint: Shaft widths from 1150mm (Platform) and 1250mm (Cabin), ideal for compact or retrofit spaces.
- No machine room: The self-supporting shaft eliminates the need for load-bearing walls or extra structural support.
- Minimal pit & headroom: Installed with as little as a 60–70mm pit and 2200mm headroom, depending on model.
- Customisable finish: Choose from a wide range of doors, colours, glazing, and flooring to match any environment.
- Fire-rated doors: EI30 and EW60 certified door options provide added safety and compliance for public and multi-residential use.
Safety & Compliance
Every Motala lift is built with user safety and regulatory compliance at its core. Each model is equipped with intelligent systems and certified features that protect users and support building standards – such as:
- Full EN81-41:2010 compliance
- Fire-rated door options (EI30 / EW60 certified)
- Emergency lowering powered by battery backup
- Pressure-sensitive safety edges around platform
- Two-way voice communication for emergency contact
- Automatic park function linked to fire alarm systems
- Integrated shaft lighting and system failure alert
Design Options & Customisation
Both Motala 2000 models offer a wide range of design choices to suit modern interiors.
- Choose from RAL colour finishes for doors and shaft panels, with the option of solid or glazed wall sections.
- Flooring options include vinyl, oak-effect laminate, and rubber coin-patterned finishes for practical style.
- Opt for stainless steel or real oak finishes on the platform to complete the look.
Motala 2000 Platform Lift vs Motala 2000 Cabin Platform Lift
Choosing between the Motala 2000 Platform Lift and Cabin Platform Lift comes down to your preferred balance of cost, comfort, and aesthetics. Here’s a side-by-side look at the key differences:
Motala 2000 Platform Lift |
Motala 2000 Cabin Platform Lift |
|
Environment |
Open platform with surrounding shaft | Fully enclosed cabin |
Doors |
Manual or automatic, with multi-side configuration | Sliding door inside the cabin and swing door on the landing |
Shaft Sizes |
Wide range with custom options via C-process | Fixed size options (1250×1560 or 1250×1760 mm) |
Usage |
Ideal for regular everyday use | Best for enclosed, passenger-style comfort |
Control |
Constant pressure control inside lift | One-touch automatic control from within the cabin |
Both lifts share the same self-supporting structure, efficient chain drive system, and high safety standards. Whether you prefer the open functionality of the Motala 2000 or the traditional enclosed experience of the Cabin model, both offer smart, space-efficient access with minimal building work.
Why Choose Gartec?
With over 30 years of platform lift expertise, Gartec is trusted across the UK for reliable, hassle-free solutions. Our nationwide engineer network ensures quick response times, while our turnkey approach keeps installation simple and stress-free.
We offer award-winning service, 5-year parts warranties on select models, and most lifts can be installed in just a few days.
Future-Proof Your Premises
Whether you're upgrading accessibility or adding long-term convenience, the Motala 2000 range makes it easy. Our team is here to help you find the right solution, with expert advice and a seamless installation process from start to finish.
BOOK A FREE SURVEYSpeak To Our Team Today
Frequently Asked Questions – Motala 2000 Range
| What is the installation time? | Most installations take just a few days once site preparation is complete. Thanks to the self-supporting shaft, minimal building work is required. |
| Do I need a pit or machine room? | No machine room is required. A shallow pit (60mm for Platform, 70mm for Cabin) is ideal, but a ramp can be used if digging a pit isn’t possible. |
| Is planning permission required? | Not usually. However, in some cases (e.g. listed buildings or external installations), planning advice may be needed. We can help guide you through this if required. |
| What’s the difference between a platform and cabin lift? | The Motala 2000 Platform Lift has an open feel with constant-pressure controls, while the Cabin Platform Lift is fully enclosed with automatic sliding doors and one-touch operation – more like a traditional passenger lift. |
