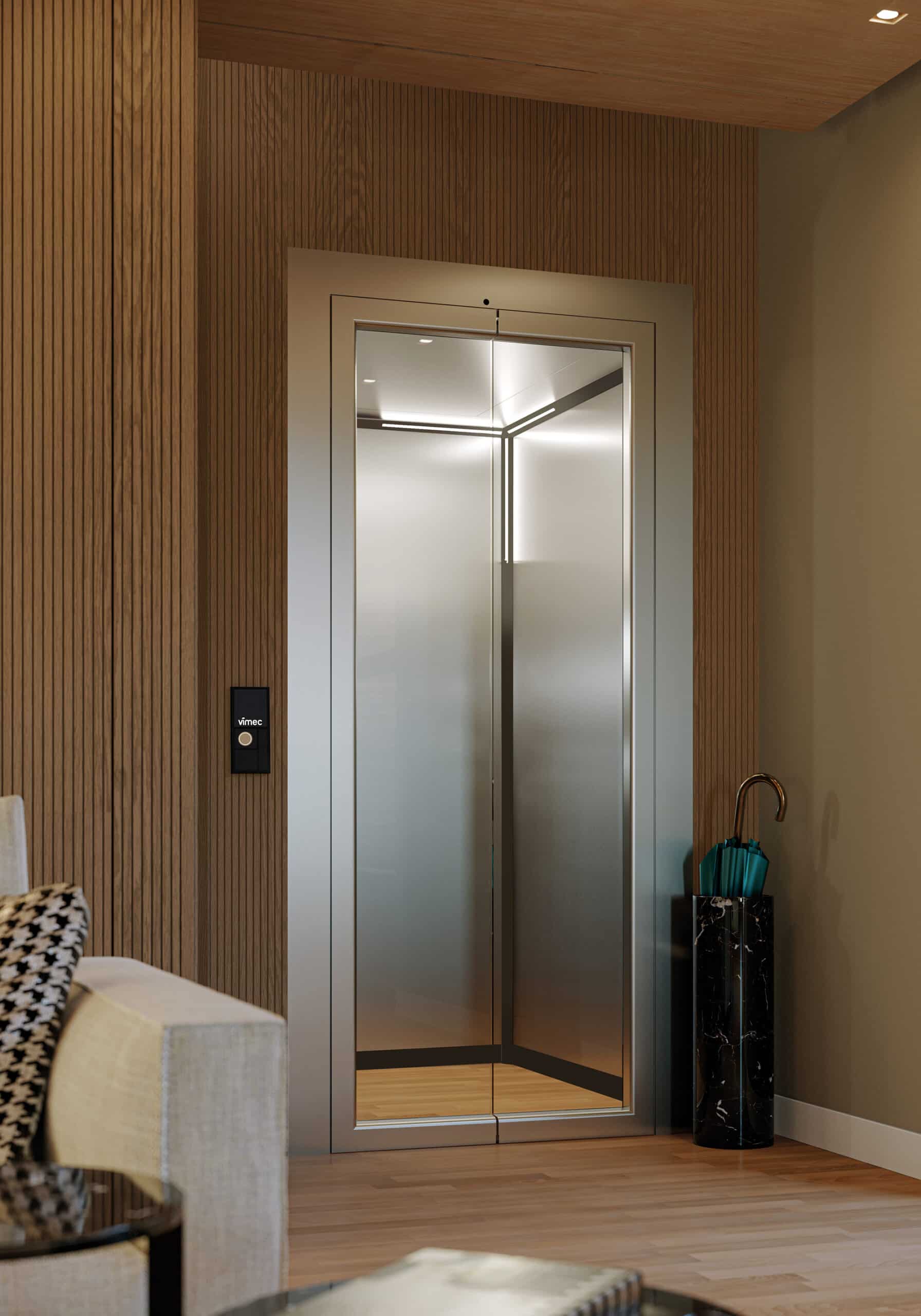

Vimec AR:IA Home Cabin Lift
The Vimec AR:IA is a home cabin lift built for safe, efficient travel between floors. It uses an oil-free, machine-room-less (MRL) system to reduce energy use and space requirements. Cabin sizes, entrances, and finishes can be specified to suit the property, with installation for a two-stop model typically completed in under a week. Designed to European safety standards, the AR:IA offers reliable performance with a range of adaptable options.
Lift Enquiry
Product Pages Enquiry Form
Why UK Homes Choose the Vimec AR:IA Home Cabin Lift
With a shallow pit and minimal headroom requirements, this lift reduces the need for major building alterations, making installation straightforward in both new and existing properties. Multiple cabin sizes and entrance configurations allow for integration into varied layouts, while the choice of finishes supports different interior styles.
With proven safety features and low running costs, the AR:IA meets both practical and regulatory needs for long-term home accessibility.
Performance & Safety
Drive system |
MRL design with no extra space beyond the shaft. |

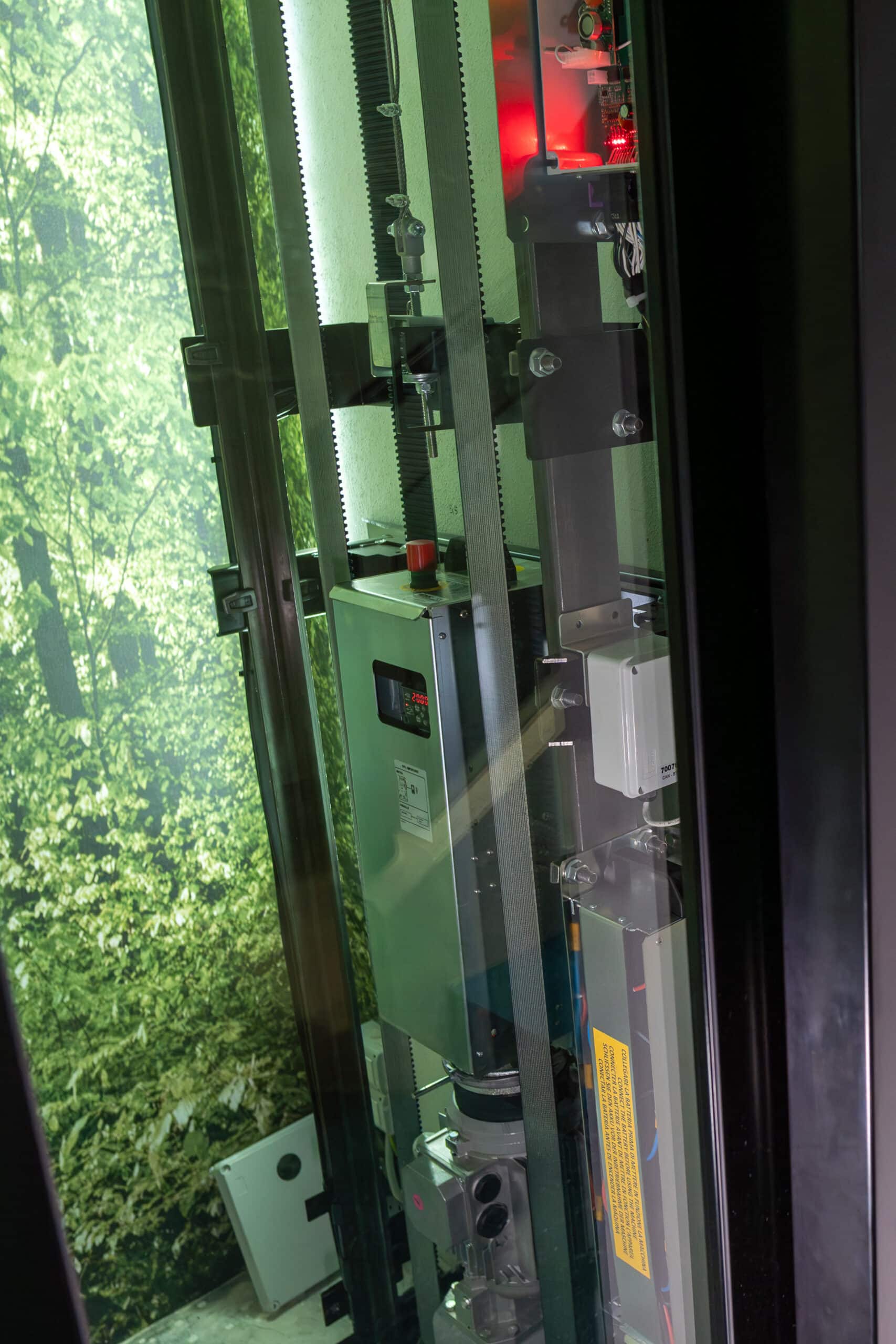

Motor control |
Belt drive with inverter for smooth start/stop. |
Compliance |
Meets European Machinery Directive 2006/42/EC. |
Safety sensors |
Full-height photocell barriers and overload protection. |
Freedom to Change Your Mind
Cabin wall panels, flooring, and ceiling finishes can be replaced or upgraded at any stage without dismantling or replacing the core lift system. This means the lift can adapt as your interior changes, whether you want to update colours, switch to a new material, or incorporate sustainable options from the available range.
By enabling future updates to cabin finishes without replacing the main lift system, the AR:IA reduces waste over its lifetime. This approach supports long-term sustainability while delivering safe, reliable vertical travel in the home.
Design & Comfort
Cabin sizes |
From 810 x 900 mm to 1140 x 1400 mm |

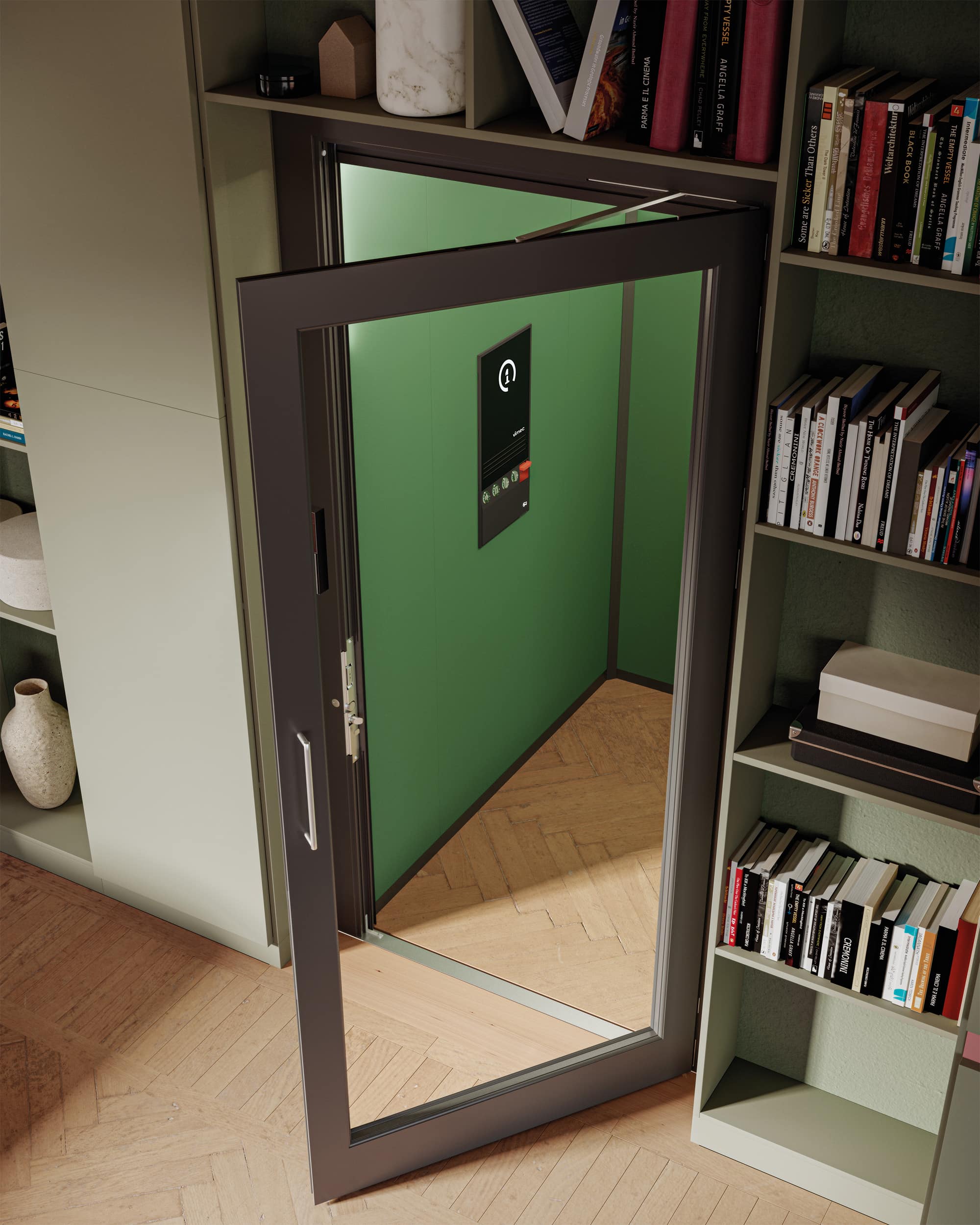

Entry options |
Single, through, or adjacent entrances. |

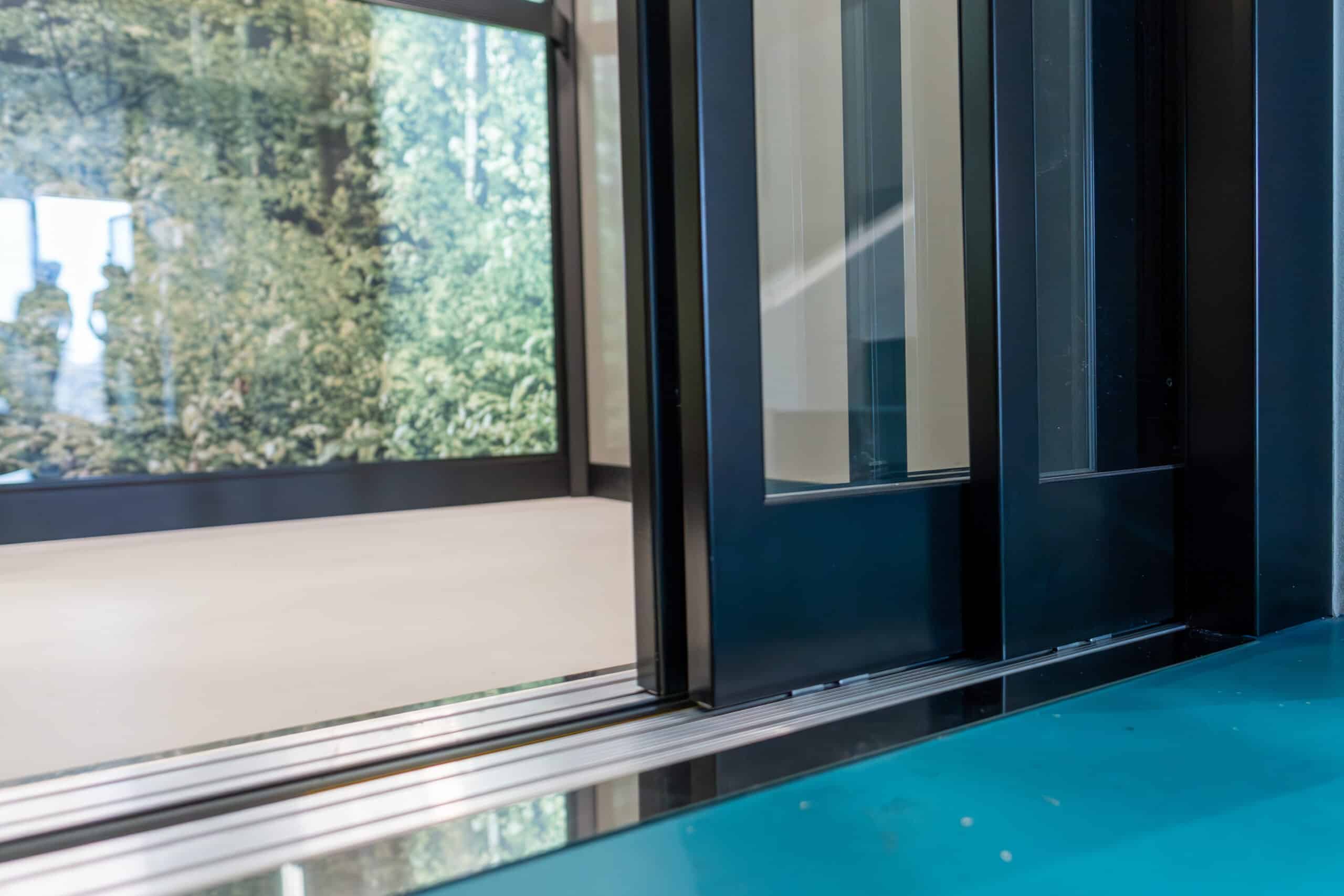

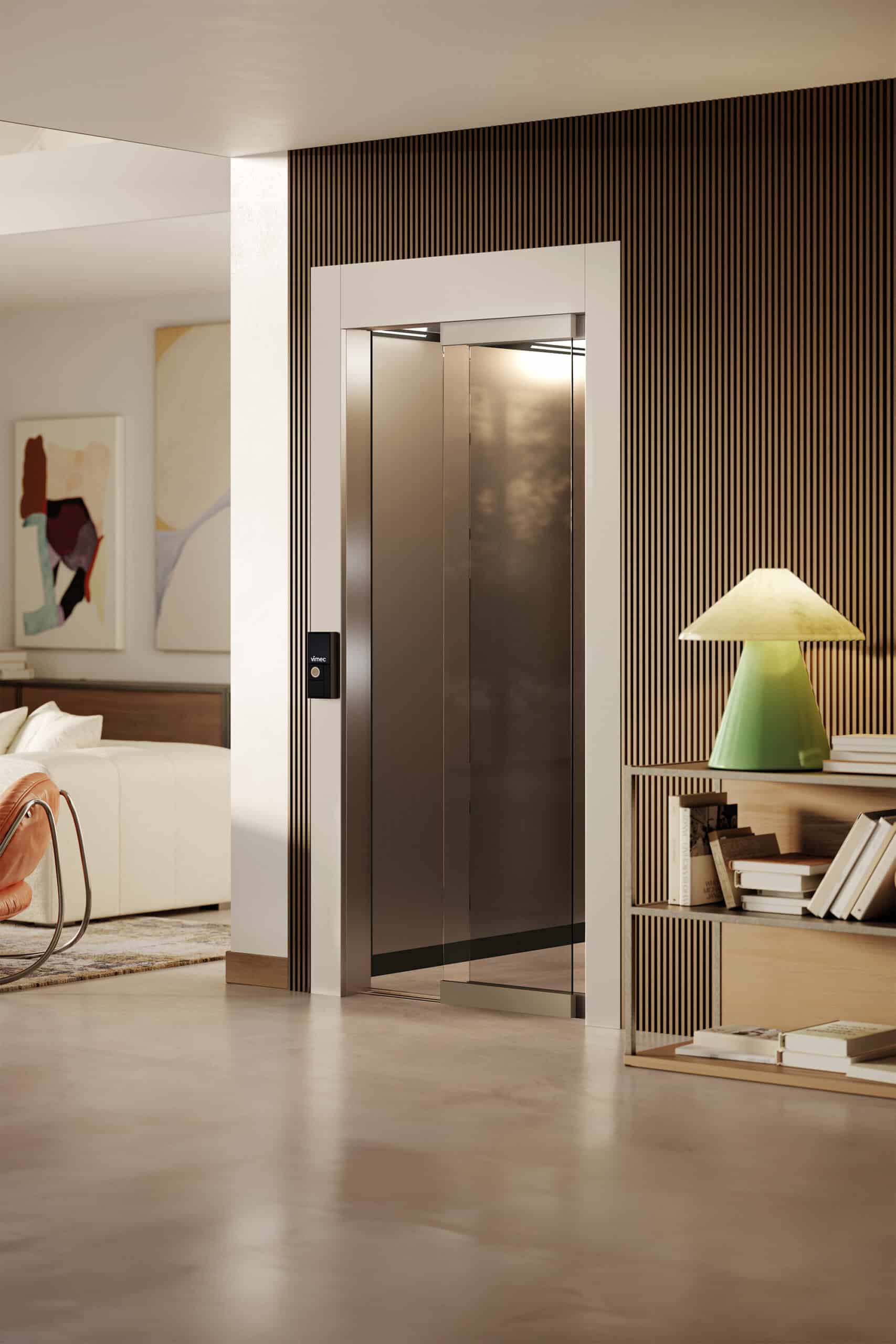

Door types |
Telescopic doors in steel, glass, or panoramic finishes. |

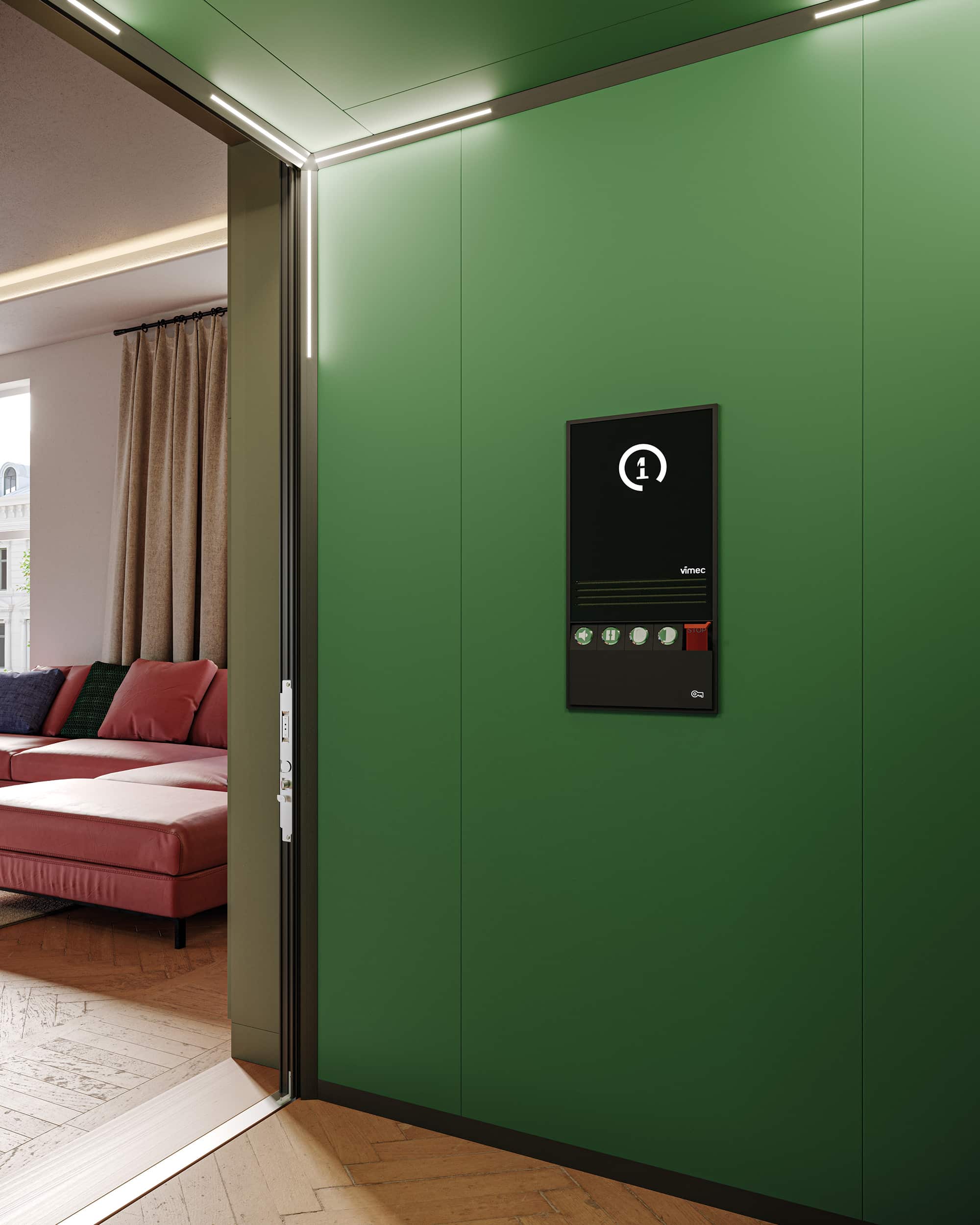

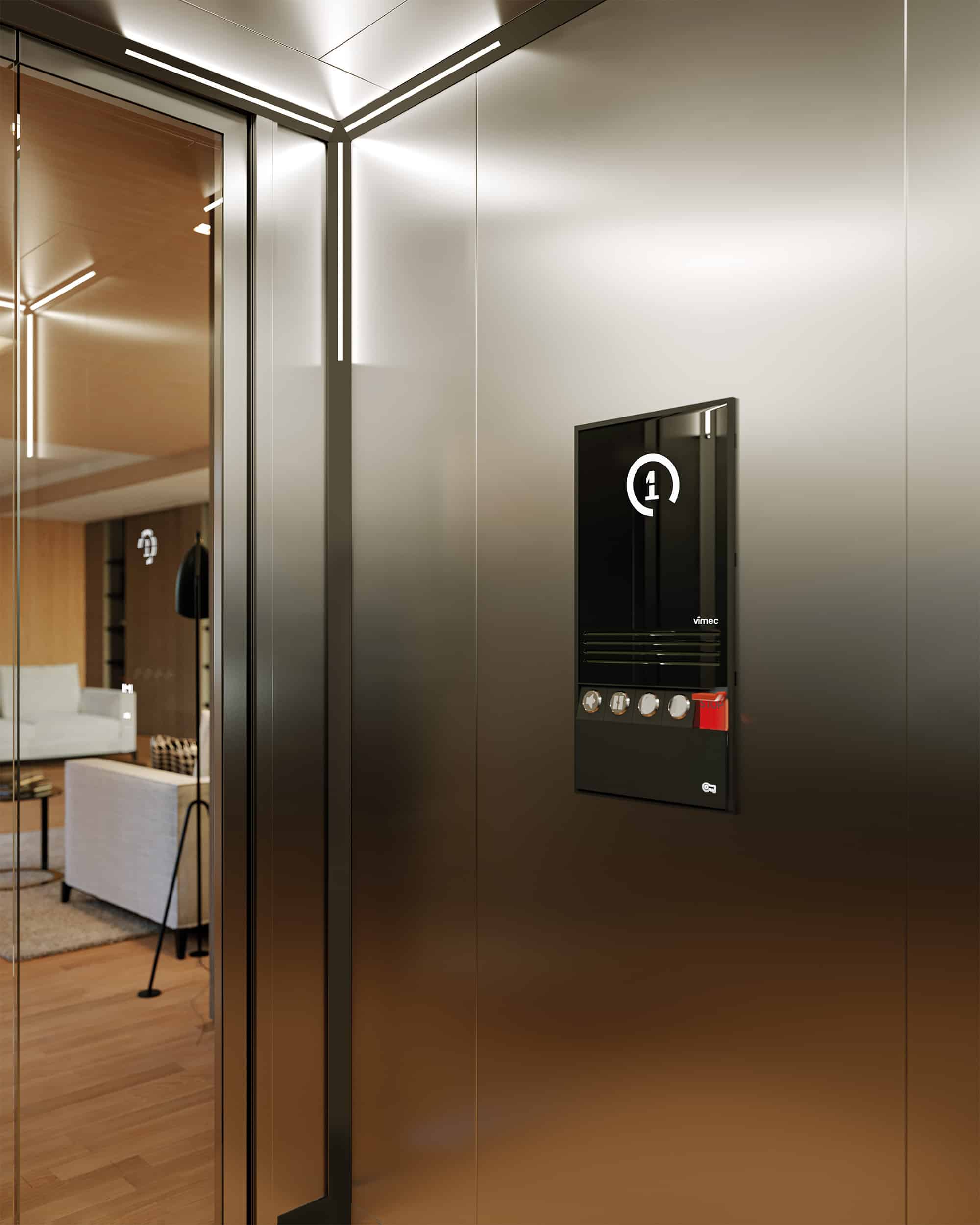

Wall finishes |
Wood effect, steel, skinplate, and textured panels; sustainable options available. |
Flooring options |
Rubber, marmoleum, and other finishes in a range of colours. |

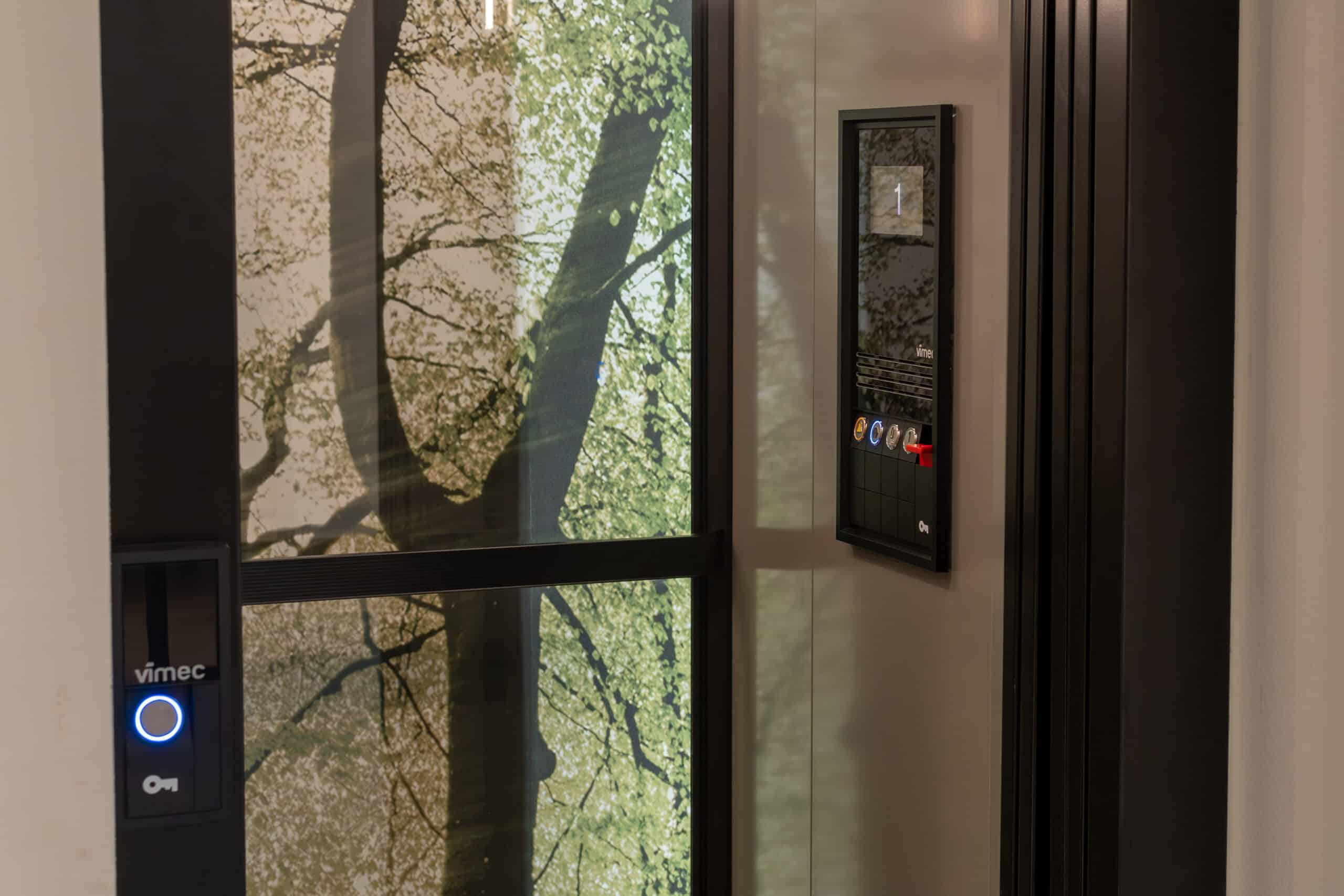

Glazing options |
Optional full or half glazing; transparent or grey-tinted safety glass |
Mirror options |
Full, half, or vertical mirrors available |
Lighting |
LED lighting with optional configurations. |

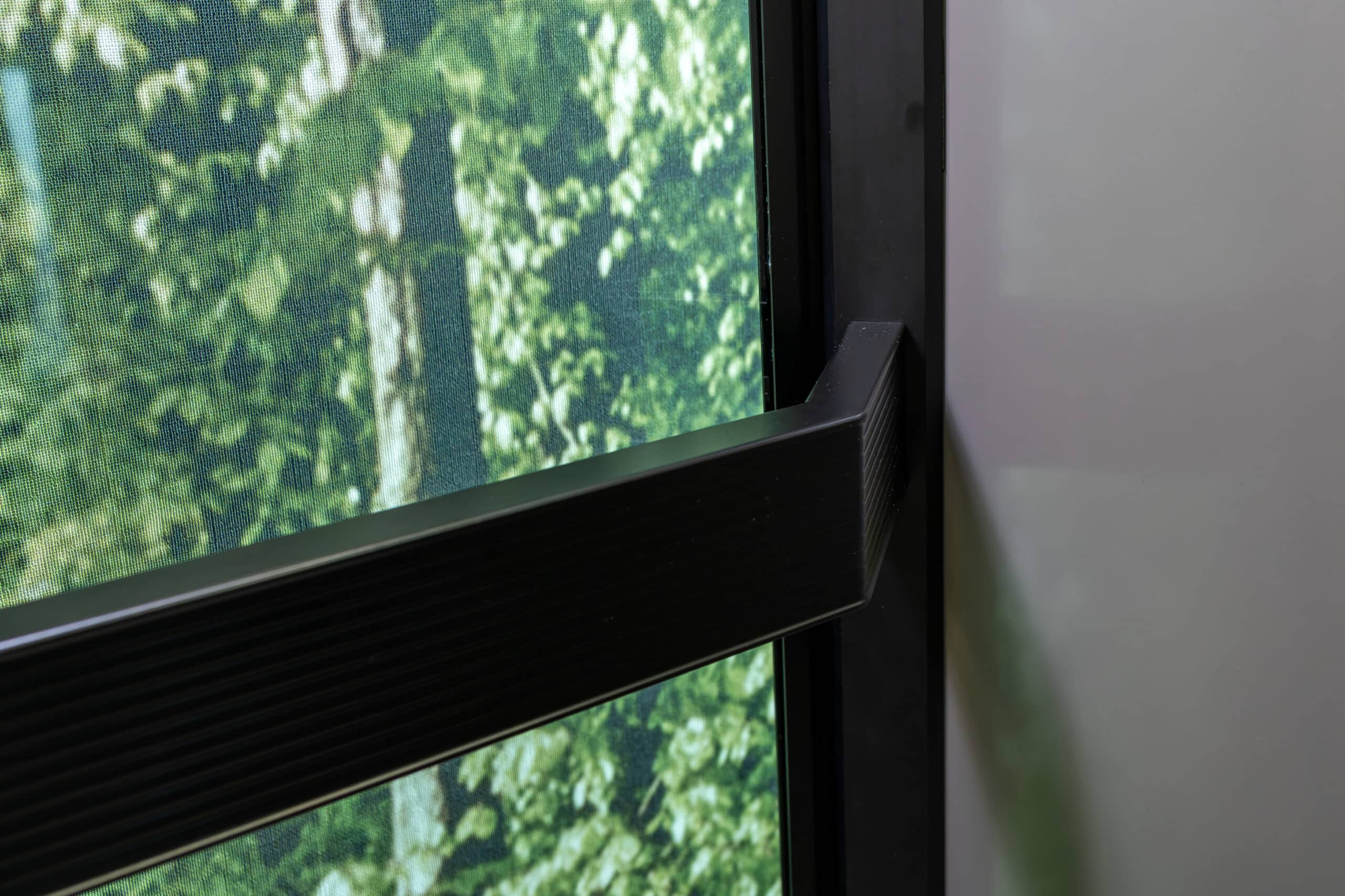

Handrail |
Optional matt black aluminium handrail for added support. |
A Cabin Lift for Eco-Conscious Homeowners
The Vimec AR:IA Home Cabin Lift is designed to be energy efficient and responsible. Its oil-free, machine-room-less drive system reduces environmental impact while keeping operating costs low. It also consumes minimal power, with an inverter-controlled motor ensuring efficient operation.
A range of sustainable wall panel materials is available, allowing you to choose finishes that support a lower environmental footprint while keeping your build durable.
Technical Specifications
Rated speed |
Up to 0.15 m/s |
Load capacity |
400 kg standard / 450 kg heavy-load version |
Travel height |
Up to 14.6 m |
Maximum stops |
6 |
Pit depth |
120 mm (vinyl floor) / 140 mm (other flooring) |
Minimum headroom |
2,600 mm (telescopic doors) |
Door height |
2,000 mm |
Motor size |
1.5 kW standard / 3 kW heavy-load version |
Power supply |
Single-phase 25A / heavy-load version available |
Standard cabin height |
2,000 mm |
Door configuration |
Maximum 2 doors per floor |
Why Choose Gartec?
We hold over 30 years of experience supplying and installing platform lifts across the UK. Our award-winning team provides a complete service, from initial consultation to installation and ongoing maintenance. The whole process is managed in-house, ensuring projects are completed efficiently and to a high standard.
With nationwide coverage and a focus on long-term support, we deliver home cabin lift solutions that meet all technical requirements and customer expectations.


A Safe, Adaptable Lift Solution for Your Home
The Vimec AR:IA Home Cabin Lift provides safe, efficient travel between floors with options to suit different homes and requirements. Built to European standards and designed for long-term adaptability, it offers a practical route for improving accessibility while maintaining control over space, finish, and style. Book your free consultation today and explore how the AR:IA can be built to fit your home.
BOOK A FREE SURVEYSpeak To Our Team Today
FAQs
How much space does the AR:IA cabin lift require? |
Cabin sizes start from 810 x 900 mm, with options up to 1140 x 1400 mm. Entrances can be single, through, or adjacent, allowing flexible placement. The machine-room-less design means no additional space is needed beyond the lift shaft. |
Will installing the lift involve major building work? |
For most homes, installation is straightforward. A standard two-stop ARIA can be installed in under a week, with a shallow pit depth of 120–140 mm and no machine room required. Minor building adjustments may be needed to accommodate the shaft. |
How much does the AR:IA cost? |
Costs vary depending on cabin size, finishes, and number of stops. Pricing is provided after a site survey and specification review to ensure accuracy. For more information, please contact sales@gartec.com |
How noisy is the AR:IA in operation? |
The belt drive and inverter-controlled motor are smooth to start and stop, with minimal vibration and noise. Careful cabin construction and door mechanisms further reduce operational sound for quiet use in residential settings. |
Does the AR:IA meet safety and compliance standards? |
Yes. The AR:IA complies with the European Machinery Directive 2006/42/EC and includes full-height photocell barriers, overload protection, battery-powered emergency lowering, and an auto dialler as standard. |
