Battery-Powered
Low power use with
standby mode to cut
energy costs further.
Safety & Compliance
Built to meet European safety
standards for public
and private use.
Low Maintenance
Reliable design with
minimal servicing needs
and reduced downtime.
Proven Durability
Tested for long-term use
indoors and outdoors
in busy areas.

The Vimec V6 & V6s Range

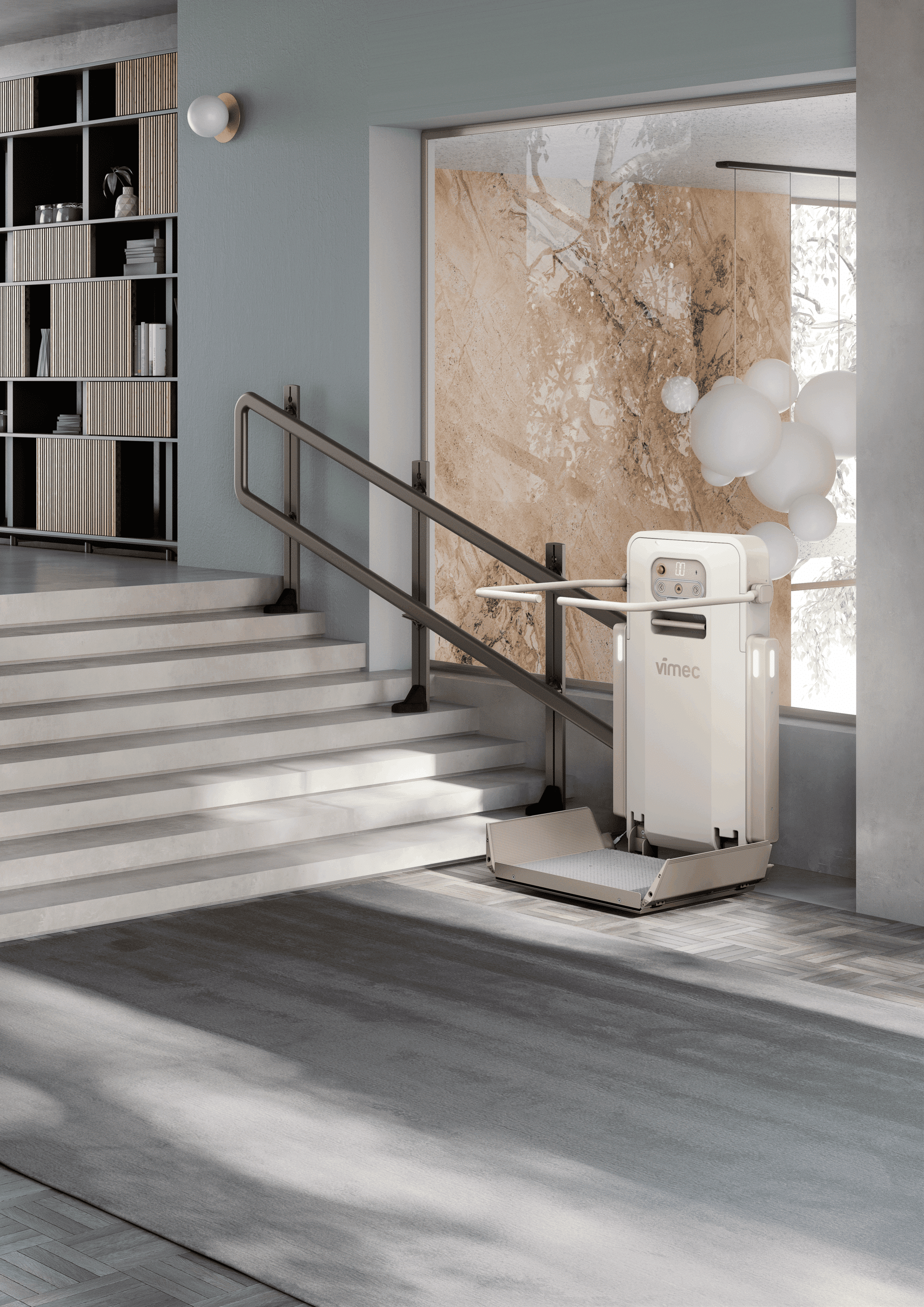

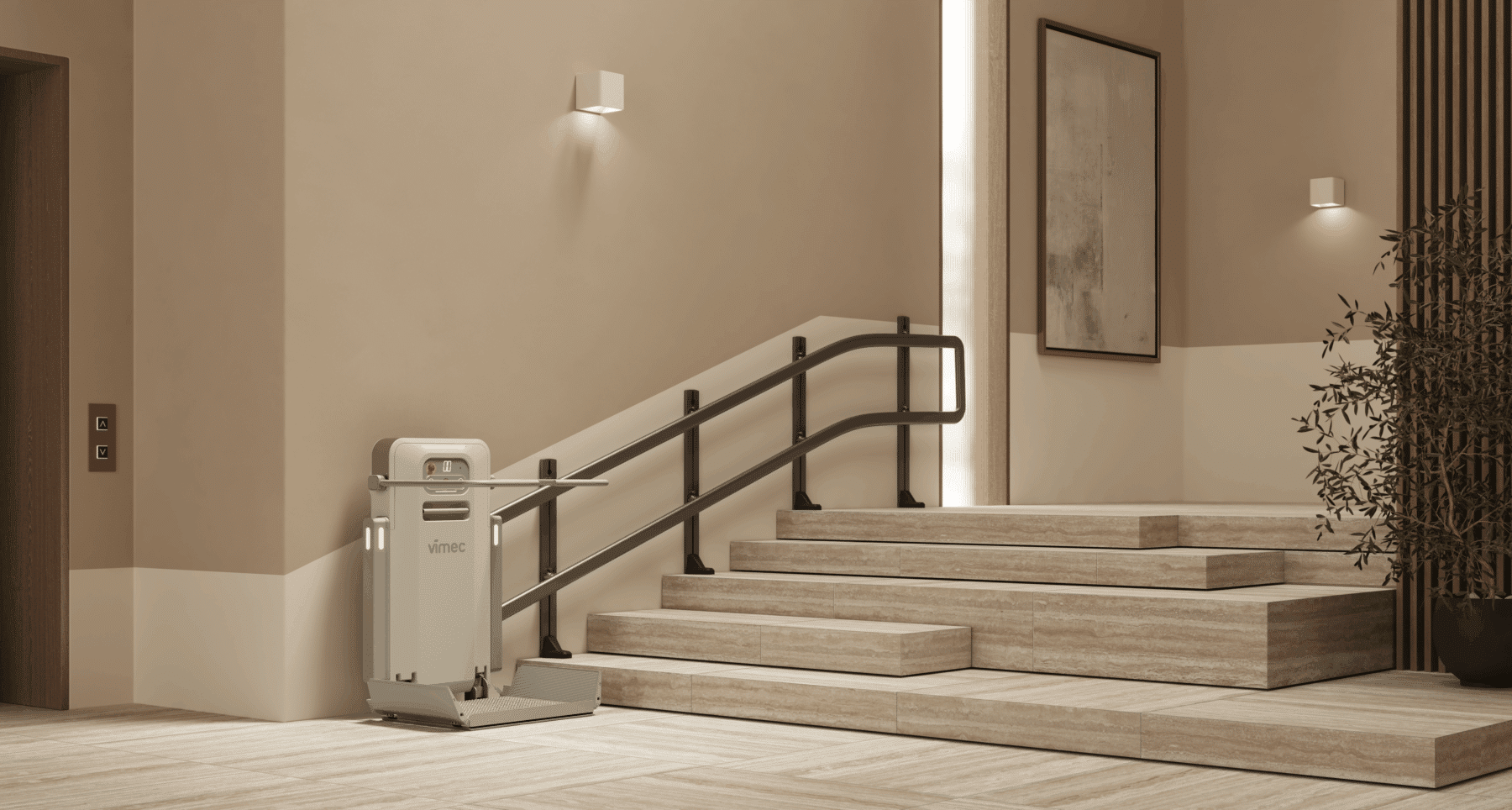

Vimec V6 Platform Stairlift

A compact, reliable platform stairlift for straight staircases indoors or outdoors

The Vimec V6 is designed for smooth travel along straight staircases, providing wheelchair access in homes, public buildings, and commercial spaces. With a space-saving folding platform, multiple platform sizes, and fast installation, it operates reliably in both indoor and outdoor settings.

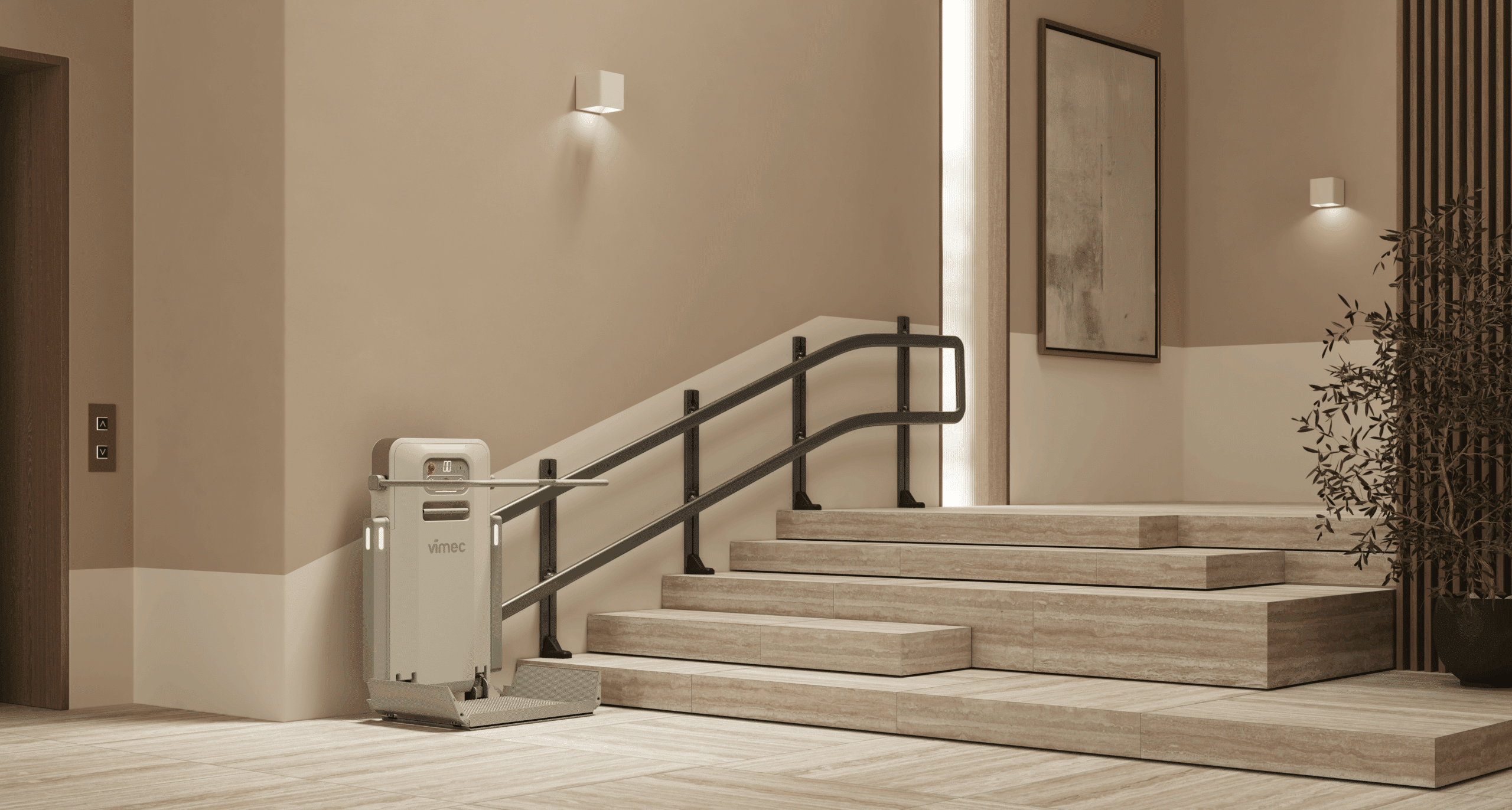

Vimec V6s Platform Stairlift

A versatile platform stairlift for curved staircases with landings

The Vimec V6s offers the same safety, reliability, and space-saving design as the V6 but with a track system engineered for curved staircases, landings, and changes in slope. Suitable for both indoor and outdoor use, it adapts to different layouts in homes, commercial premises, and public buildings, maintaining accessibility where a straight-track stairlift isn’t an option.

Standard Features




Both the Vimec V6 and V6s come equipped with a range of built-in features to ensure safe and convenient use in any environment:



Fully automatic operation

Platform, arms, and ramps fold and unfold without effort, making use simple for all users.

Clear feedback

LED status lighting and an onboard digital display show the lift’s availability and any alerts.

Authorised use only

A removable magnetic key ensures the lift is only operated by approved users.

Safety protection

Sensitive edges on all moving parts stop the lift instantly if an obstruction is detected.

Attendant control

Supplied with a wireless handset so an operator can move the lift remotely when needed.

Compact installation

No separate motor box or machine room is required, saving space on site.

Durable build

A robust aluminium frame offers strength, stability, and long service life.

Smooth travel

Traction drive technology delivers quiet, comfortable movement along the rails.

Design & Comfort Features

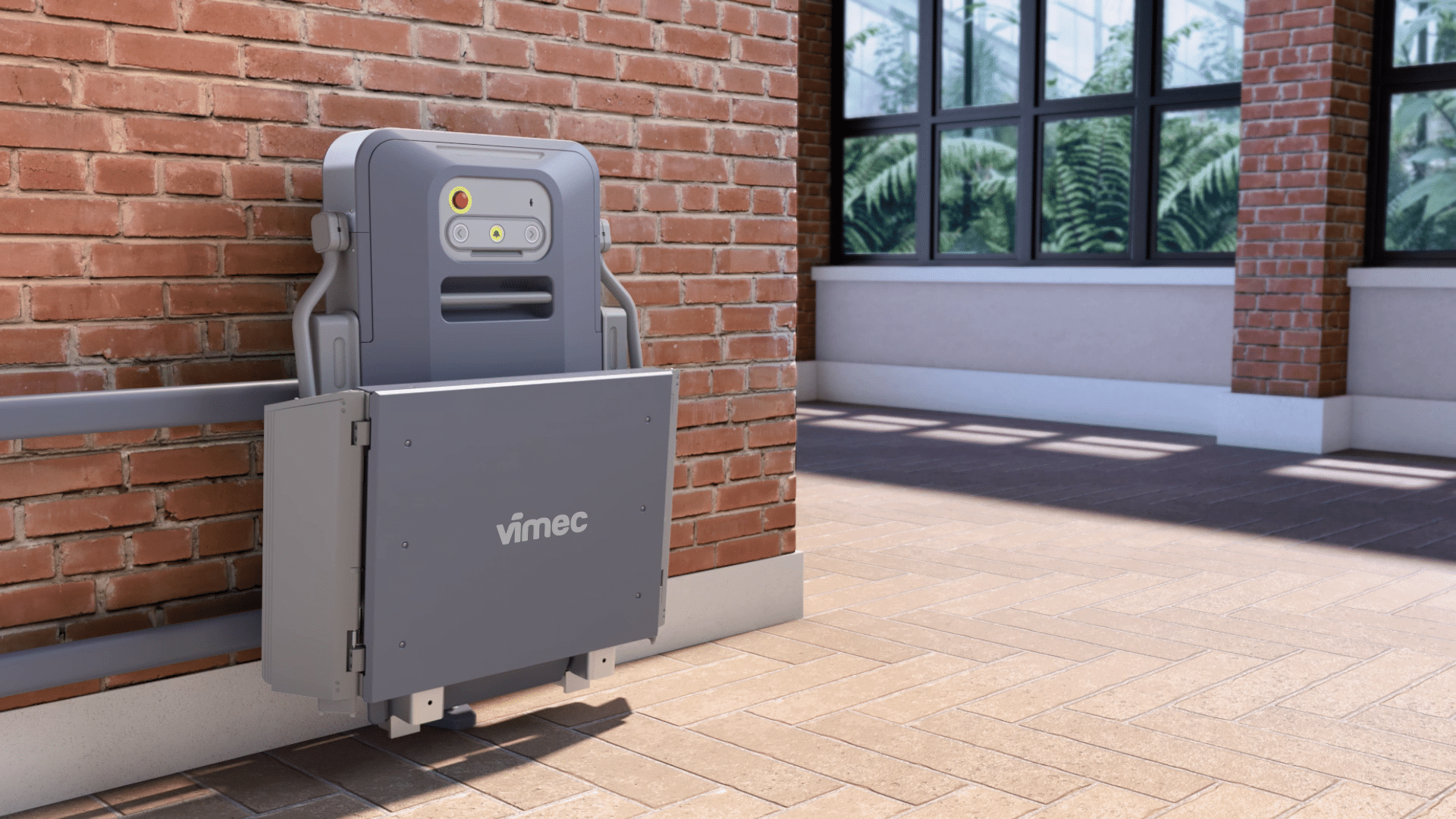

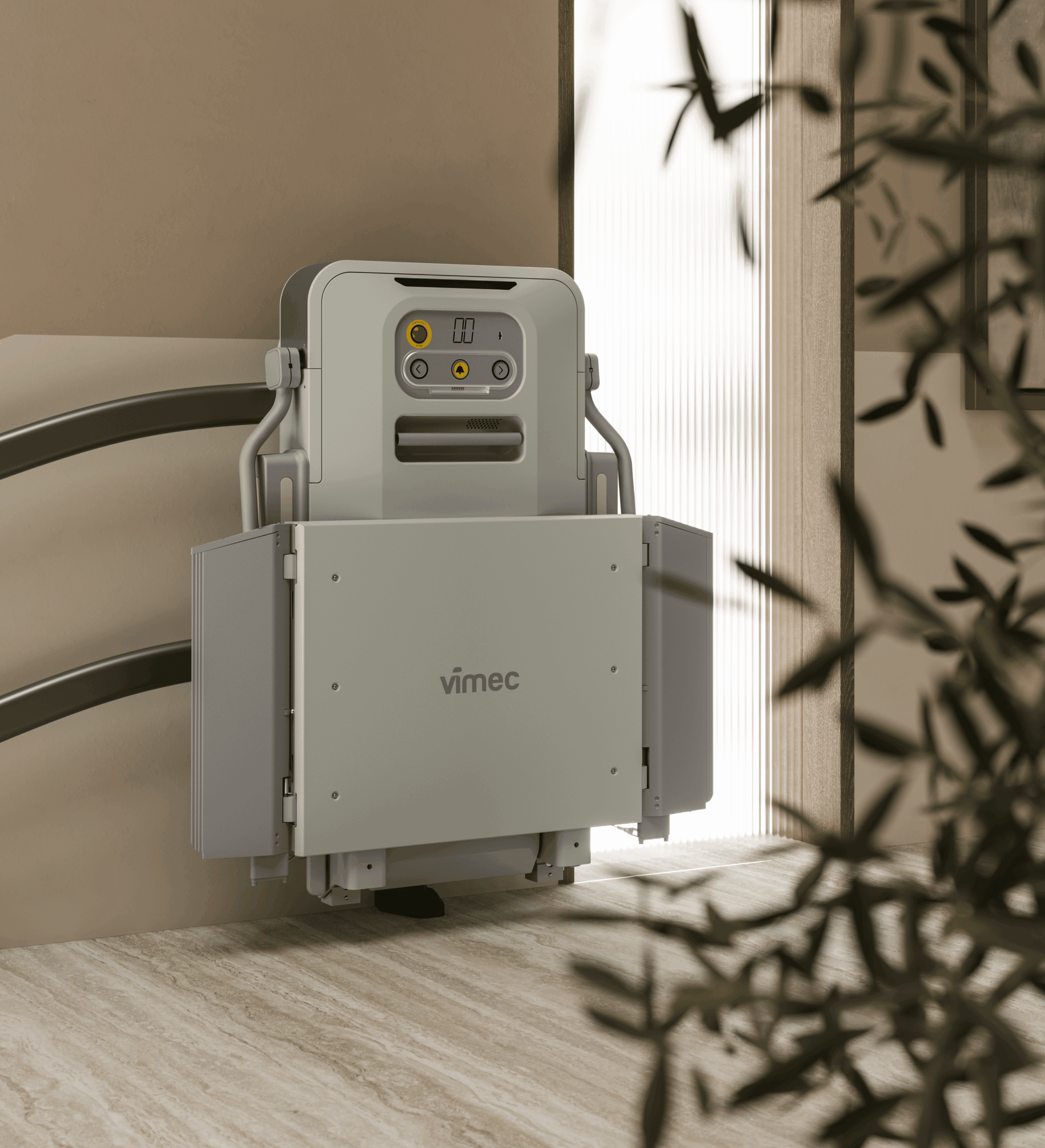

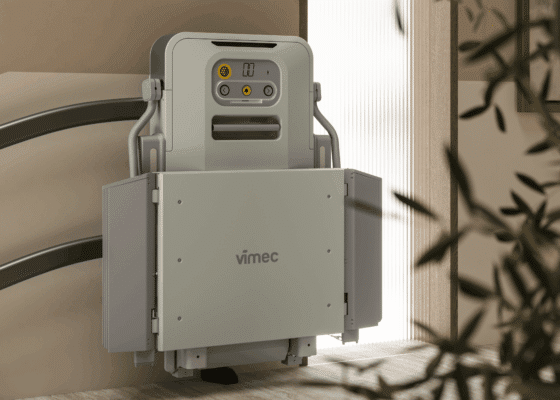

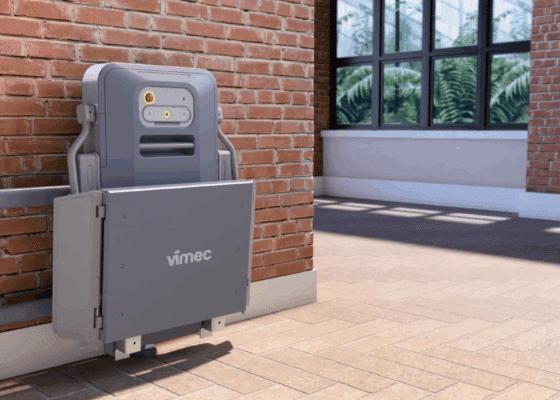

The folding platform on both models saves space when not in use, making them ideal for narrow staircases, while the smooth traction drive reduces vibration and keeps noise to a minimum – with the V6s operating at under 50 dB, quieter than a normal conversation.

Safety edges and anti-crush sensors protect users and surroundings, while safety arms and platform flaps secure the wheelchair during travel. Ergonomic onboard controls, wall-mounted call stations, and a wireless attendant handset ensure ease of use.

Once features are specified, a choice of platform sizes and custom finishes allows the lift to complement both modern and heritage interiors.

Options & Customisation




The V6 and V6s can be built to meet specific needs, environments, and branding requirements. These options allow the platform stairlift to adapt to a wide variety of spaces, user needs, and operational demands.



Custom finishes

Customisable cover colours or graphic wraps to match surroundings or corporate identity.

Folding seat

Provides comfortable use for non-wheelchair passengers.

Intermediate stops

Enable access to multiple levels within one installation.

Remote controls

Post-mounted remote controls allow convenient operation from a distance.

Attendant radio control

Wireless handset for supervised use when required.

Protective cover

Keeps the unit safe from weather exposure in outdoor settings.

Smart connectivity

MyVimec app and cloud diagnostics allow remote monitoring and easy maintenance support.

Power supply

Runs on a standard 230VDC single phase (13A fused spur), with integrated battery backup for reliability.

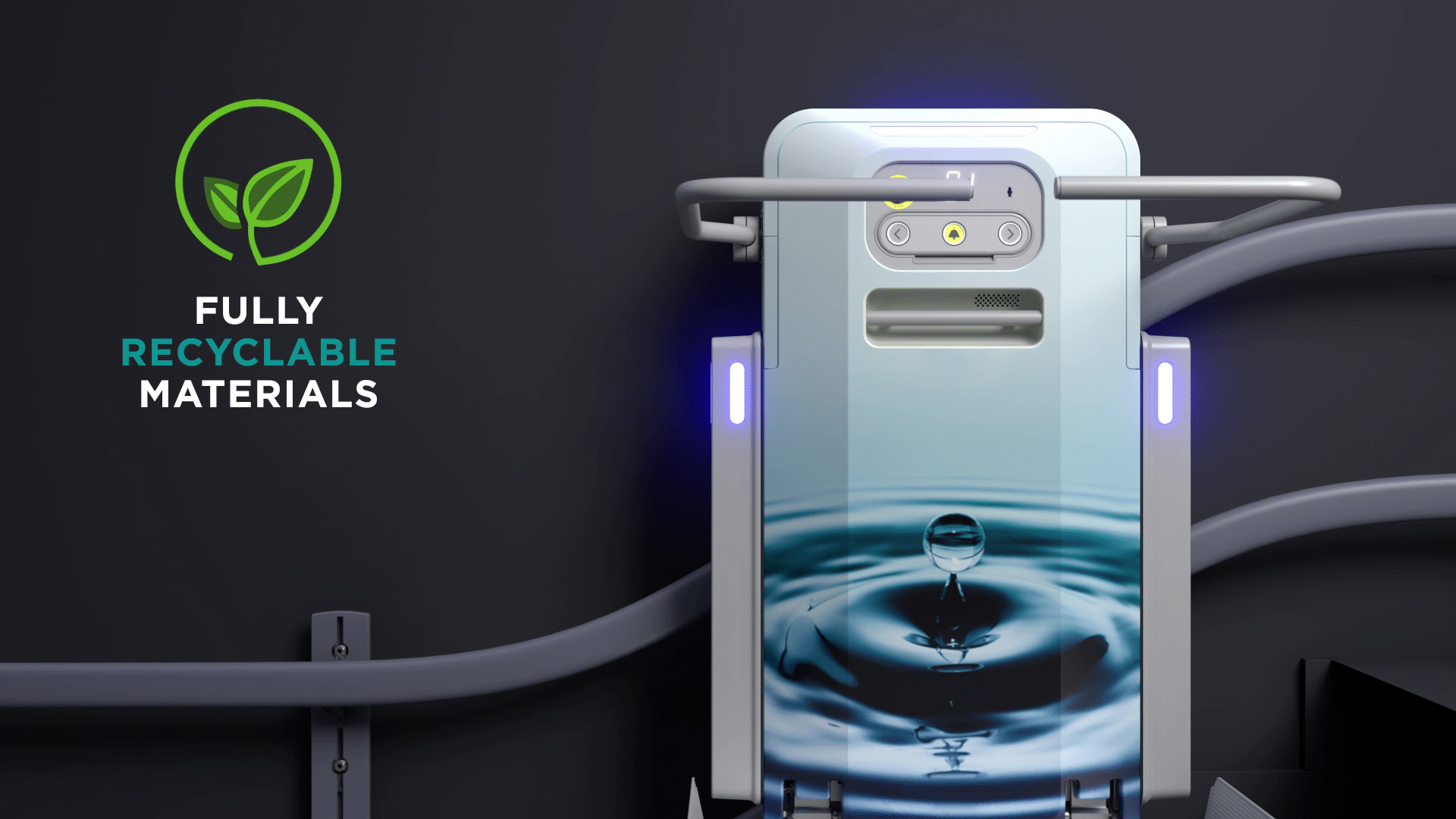

A Sustainable, Upgradeable Design

The V6 and V6s are built for long-term sustainability. Low power consumption reduces running costs, while durable components minimise the need for replacements. Both models are designed for straightforward servicing, with accessible parts to reduce downtime and disruption.

Platform covers and finishes can be updated to suit refurbishments, rebranding, or changing requirements without replacing the main system, supporting both environmental and operational efficiency.

Technical Specifications




The V6 and V6s can be built to meet specific needs, environments, and branding requirements. These options allow the platform stairlift to adapt to a wide variety of spaces, user needs, and operational demands.



Load Capacity

V6: 300 kg (225 kg on inclines > 40Β°)

V6s: 300 kg (250 kg on inclines > 45Β°)

Minimum Staircase Width

Both: 1255 mm wide (smaller platform width is available on request)

Platform Dimensions

Both: 800 Γ— 1250 mm (standard), with other sizes available.

Folded Depth

V6: 385 mm

V6s: 370 mm

Travel

Both: Up to 30 m

Speed

Both: 0.10 m/s

Incline Range

Both: 0–45Β°

Controls

Both: On-board controls, wall-mounted call stations, and wireless remote.

Power Supply

Both: 230 V AC single-phase

Safety Features

Both: Safety edges, anti-crush sensors, overspeed governor, emergency stop, safety arms, and platform flaps.

Indoor/Outdoor Rating

Both: IP44 weather-resistant, tested from +50 Β°C to -20 Β°C

Indoor & Outdoor Installation

The Vimec V6 and V6s are designed for reliable performance indoors or outdoors. Both models carry an IP44 protection rating and are built from corrosion-resistant aluminium to withstand weather exposure. The V6s is additionally tested for extreme temperatures, from +50 Β°C to -20 Β°C, making it suitable for exposed or climate-challenged sites.Β

Their adaptable track systems allow installation at building entrances, between floors, or along public access routes, ensuring safe, compliant travel in all conditions.

Badge displaying that Gartec has been voted Best Platform Lift Supplier 2024 in the BUILD Design and Build Awards

Why Choose Gartec?

We have over 30 years of experience delivering lift solutions for homes, commercial premises, and public buildings across the UK. Our team understands the technical and compliance requirements for accessibility in a wide range of settings and manages every stage in-house, from specification to installation and maintenance.

With nationwide coverage and a focus on reliable, long-term support, we provide platform stairlifts that meet both operational needs and user expectations.

We had a limited budget and Gartec worked out the very best option and price for us, they ensured we got the correct people involved regarding the design of the hole for the lift to travel through, and we duly placed the order. We had some misgivings about what we ordered as we were concerned about how it would look when it was installed and how obtrusive it would be, indeed we decided to amend the order so the lift had glass sides and wow! How glad we are that we did. The communication was first class all through and the aftercare has been very good.

I examined the market for a suitable lift for our premises, and Gartec had a lift that would fit into our small bar area and would not be too obtrusive, hence making contact and requesting someone visit to look at the site and advise on the best option for us, we are a grade 2 listed building and were having problems getting the planning permission for the lift to be installed where it would serve us best, Gartec made contact and arranged to visit us. Gartec was very professional and most helpful, and much more interested in getting it right for us than any of the other suppliers.

The cricket club is currently being used as a COVID vaccination centre and the lift is essential for those of limited mobility. Hence it was important to get the work done as soon as possible and on a day when the centre wasn’t in use.Β  We’re very grateful for the swift response from Gartec, the service engineer was also very competent and helpful.


Plymouth Cricket Club

“We turned to Gartec, and their innovative moving floor design. It was an attractive and successful option taking only 6 days to fit. The safety features include a remote lock and a Smart app operation from an iPhone, so parents can ensure no trapped fingersΒ  or β€˜junior joyriding’ – perfect for a family house. We have been impressed with both the product and professional installation, and would certainly consider Gartec again for another Octagon home.”


Anton Dummer, Octagon Developments

“Both our Architect and Building Manager found Gartec Home professional, organised and proactive, and the installation process went smoothly. All the people my husband and I have dealt with have been helpful, and any queries dealt with quickly. The end result is totally integral to the build and reflects the modern architectural style.”


Hazel Coomber, Brentwood

β€œI would like to say that everyone at Gartec has been very helpful. The lift is my lifeline and enables me to live here.”


Barbara, Stourbridge

β€œThe Gartec Home team were friendly and knowledgeable, they kept me informed and even tidied everything up at the end!”


Mary Jones, Abingdon

β€œGartec offered a quick turnaround using a high-quality lift solution. It was important to have lifts that would complement the design and quality of the rest of the houses. The Gartec lifts offered this and only required a short installation period carried out by two friendly engineers. I am pleased with the overall look of the lifts installed and they will contribute to the townhouses being desirable to a bigger market. We look forward to working together again.”


Keith Perfect, Bellwood Homes

Safe, Accessible Travel for Any Staircase

The Vimec V6 and V6s deliver safe, compliant access for homes, public buildings, and commercial sites. Compact, durable, and low maintenance, they suit both straight and complex staircases. Book a free site survey or consultation to find the right model for your space.

BOOK A FREE SURVEY

Speak To Our Team Today

Business Address(Required)
This field is for validation purposes and should be left unchanged.

FAQs




What’s the difference between the V6 and V6s?

The V6 is for straight staircases. The V6s handles curves, landings, and slope changes.

Where can the V6 and V6s be installed?

Suitable for homes, public buildings, and commercial sites. Common in schools, retail and leisure venues, churches, tourist and hotel environments, and nursing homes. Minimal building work needed for most installations.

Can they be used outdoors?

Yes. Both are IP44 rated and built from corrosion-resistant aluminium. The V6s is tested for use from +50Β°C to –20Β°C, making it suitable for exposed or weather-prone locations.

What is the maximum capacity?

300 kg standard. On steep inclines, the V6 supports 225 kg beyond 40Β°, and the V6s supports 250 kg beyond 45Β°.

Is there a power backup?

Yes. Both operate on 24 V DC batteries and have a rescue mode that lowers the platform in a power cut.

How quiet are they?

The V6s runs at under 50 dB, quieter than a conversation. The traction drive reduces noise and vibration on both models.

How much do they cost?

Costs vary depending on model, platform size, track length, and installation complexity. A detailed quotation is provided after a site survey and specification review to ensure accurate pricing.
