Cabin Comfort
Fully enclosed car with
automatic busmatic
doors and single-touch
controls
Compliance Ready
EN81-41 and Part M
compliant for public and
commercial buildings
Quick Installation
Modular, self-supporting
shaft with minimal
buildersโ€™ work
Efficient Design
No machine room or
head fixing required

Why Businesses Choose the Aritco 9000

The Aritco 9000 bridges the gap between a platform and a passenger lift, delivering the convenience of a cabin-style system without the space, cost, or complexity of a traditional installation. Ideal for schools, community buildings, and nursing homes.

Supported by UK-based engineering expertise and nationwide service coverage, itโ€™s a proven choice for projects demanding performance, compliance, and long-term reliability.

Platform Sizes & Load Ratings




The Aritco 9000 is available in two platform sizes, each designed to provide generous cabin space while maintaining a compact footprint. Suitable for wheelchair users and attendants, it delivers a comfortable, accessible experience within standard commercial layouts.

Cabin Platform Sizes

1000 ร— 1400 mm or 1100 ร— 1400 mm

Capacity

400 kg / up to 5 persons

Shaft Size

1435 ร— 1600 mm or 1535 ร— 1600 mm

Structural Opening

1465 ร— 1630 mm or 1565 ร— 1630 mm

Safety & Communication

The Aritco 9000 is equipped with built-in safety and communication features designed for public and commercial use. An integrated alarm button can be connected to a telephone line or GSM auto-dialler, ensuring users can call for assistance at any time. For added control, an optional key switch allows restricted operation, making the lift suitable for environments where supervised or authorised use is required.

Cabin Options




Cabin Panels

Solid internal cabin wall panels

Car Doors

Automatic powered folding busmatic doors, full height, with vision panel

Handrails

Stainless steel handrail as standard

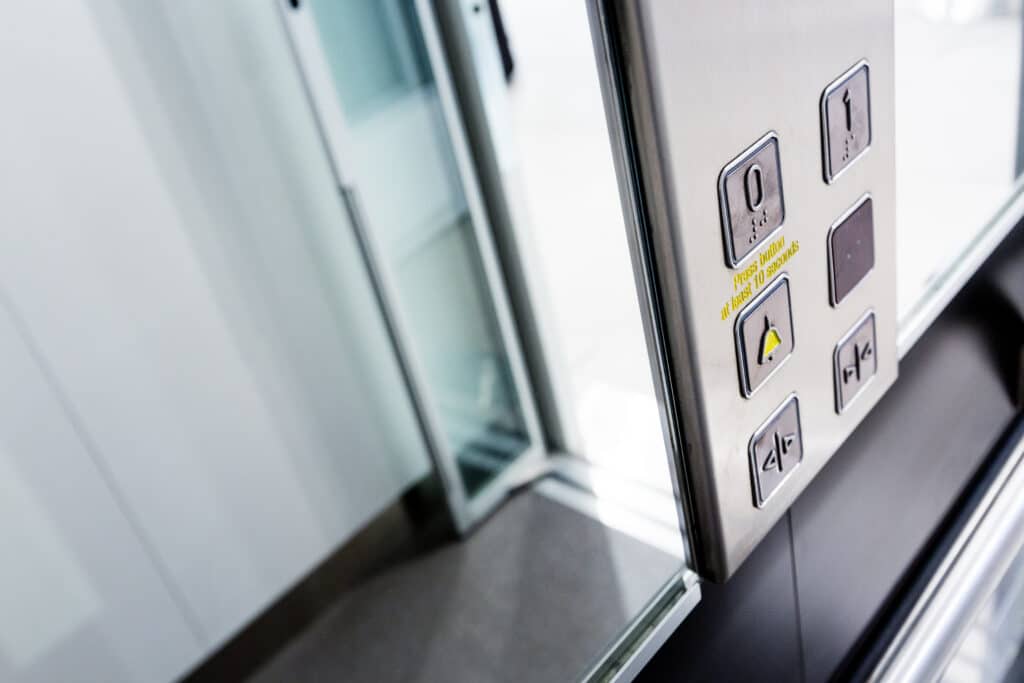

Buttons

Single-touch controls with tactile or braille options

Cabin Display

Optional LED cabin display and destination announcer

Cabin Extras

Mirror and bump rails

Shaft & Landing Options




Shaft Panels

Supplied with the lift; glass or solid RAL-coloured panels

Landing Doors

Glass or EI60 fire-rated landing doors; manual as standard, optional automatic opening

Shaft & Door Handle Colours

Standard Traffic White (RAL 9016) or optional RAL colours

Landing Display

Optional LED landing display

Installation & Ongoing Support

The Aritco 9000ย  is designed for straightforward installation and long-term dependability. Its modular shaft structure and compact 75 mm pit allow for rapid setup with minimal structural work. Most projects are completed within a week, making it ideal for commercial refurbishments or time-sensitive builds.

Powered by a quiet, efficient 2.2 kW motor, the 9000 consumes remarkably low energy, often less than everyday household appliances. Once installed, our nationwide engineering team provides 24/7 maintenance coverage and servicing plans to support ongoing performance and compliance.

Every Aritco 9000 comes with a 5-year lift product warranty and a 10-year warranty on the patented screw-and-nut drive system, offering long-term reassurance on performance, reliability and ongoing support.

Technical Overview




Type

Enclosed platform cabin lift for public & commercial use

Environment

Internal only

Compliance

EN81-41, Part M, Machinery Directive 2006/42/EC

Drive System

Patented screw and nut system with emergency battery backup

Travel Height

2,100โ€“13,000 mm

Floors Served

2โ€“6

Speed

Max 0.15 m/s

Rated Load

400 kg / up to 5 persons

Motor

3 kW

Power Supply

3-phase 400 V

Controls

Single-press operation (cabin and landings)

Doors

Landing doors: Glass or EI60, manual or optional automatic

Cabin doors: Automatic powered folding busmatic doors

Entry

Single entry on long side or through-car

Shaft

Supplied, self-supporting, glass or solid panels

Pit/Ramp

75 mm pit or ramp

Machine Room

Not required

We had a limited budget and Gartec worked out the very best option and price for us, they ensured we got the correct people involved regarding the design of the hole for the lift to travel through, and we duly placed the order. We had some misgivings about what we ordered as we were concerned about how it would look when it was installed and how obtrusive it would be, indeed we decided to amend the order so the lift had glass sides and wow! How glad we are that we did. The communication was first class all through and the aftercare has been very good.

I examined the market for a suitable lift for our premises, and Gartec had a lift that would fit into our small bar area and would not be too obtrusive, hence making contact and requesting someone visit to look at the site and advise on the best option for us, we are a grade 2 listed building and were having problems getting the planning permission for the lift to be installed where it would serve us best, Gartec made contact and arranged to visit us. Gartec was very professional and most helpful, and much more interested in getting it right for us than any of the other suppliers.

The cricket club is currently being used as a COVID vaccination centre and the lift is essential for those of limited mobility. Hence it was important to get the work done as soon as possible and on a day when the centre wasnโ€™t in use.ย  Weโ€™re very grateful for the swift response from Gartec, the service engineer was also very competent and helpful.


Plymouth Cricket Club

“We turned to Gartec, and their innovative moving floor design. It was an attractive and successful option taking only 6 days to fit. The safety features include a remote lock and a Smart app operation from an iPhone, so parents can ensure no trapped fingersย  or โ€˜junior joyridingโ€™ โ€“ perfect for a family house. We have been impressed with both the product and professional installation, and would certainly consider Gartec again for another Octagon home.”


Anton Dummer, Octagon Developments

“Both our Architect and Building Manager found Gartec Home professional, organised and proactive, and the installation process went smoothly. All the people my husband and I have dealt with have been helpful, and any queries dealt with quickly. The end result is totally integral to the build and reflects the modern architectural style.”


Hazel Coomber, Brentwood

โ€œI would like to say that everyone at Gartec has been very helpful. The lift is my lifeline and enables me to live here.โ€


Barbara, Stourbridge

โ€œThe Gartec Home team were friendly and knowledgeable, they kept me informed and even tidied everything up at the end!โ€


Mary Jones, Abingdon

โ€œGartec offered a quick turnaround using a high-quality lift solution. It was important to have lifts that would complement the design and quality of the rest of the houses. The Gartec lifts offered this and only required a short installation period carried out by two friendly engineers. I am pleased with the overall look of the lifts installed and they will contribute to the townhouses being desirable to a bigger market. We look forward to working together again.โ€


Keith Perfect, Bellwood Homes

FAQs




Is the Aritco 9000 compliant?

Yes. The Aritco 9000 is EN81-41 and Part M compliant and can be specified to meet Equality Act accessibility requirements in public and commercial buildings.

How long does installation take?

Most installations are completed within three to five days โ€“ depending on site conditions โ€“ thanks to the modular shaft design and minimal building requirements.

Does the Aritco 9000 need a pit or head fixing?

Only a shallow 75 mm pit or surface ramp is required for level access. No head fixing or machine room is needed.

What makes the Aritco 9000 different from a passenger lift?

It delivers the same enclosed cabin experience as a conventional passenger lift but at significantly lower cost and with simpler installation.

Can I choose the finishes?

Yes. Options include glass or solid RAL panels, fire-rated doors, LED lighting, and stainless steel handrails.

Is the Aritco 9000 suitable for wheelchair users?

Absolutely. Both platform sizes comfortably accommodate a wheelchair user and attendant, meeting accessibility standards for commercial buildings.

Upgrade Access with an Aritco 9000

Upgrade your building with the Aritco 9000 Platform Cabin Lift, a compliant solution offering passenger comfort with minimal disruption. Speak to our expert team today to specify the ideal configuration for your space and budget.
