ILS 1000kg & 500kg High Capacity Platform Lift
The ILS 1000kg & 500kg High Capacity Platform Lifts provide reliable vertical transport for passengers, wheelchairs, bikes, and light goods in commercial and public environments. Both models feature a modular self-supporting shaft, screw and nut drive system, and no requirement for a separate machine room, offering a compact and low-maintenance solution for safe multi-floor access.
Lift Enquiry
Product Pages Enquiry Form
Opting for the ILS Range
ILS 1000kg Platform Lift

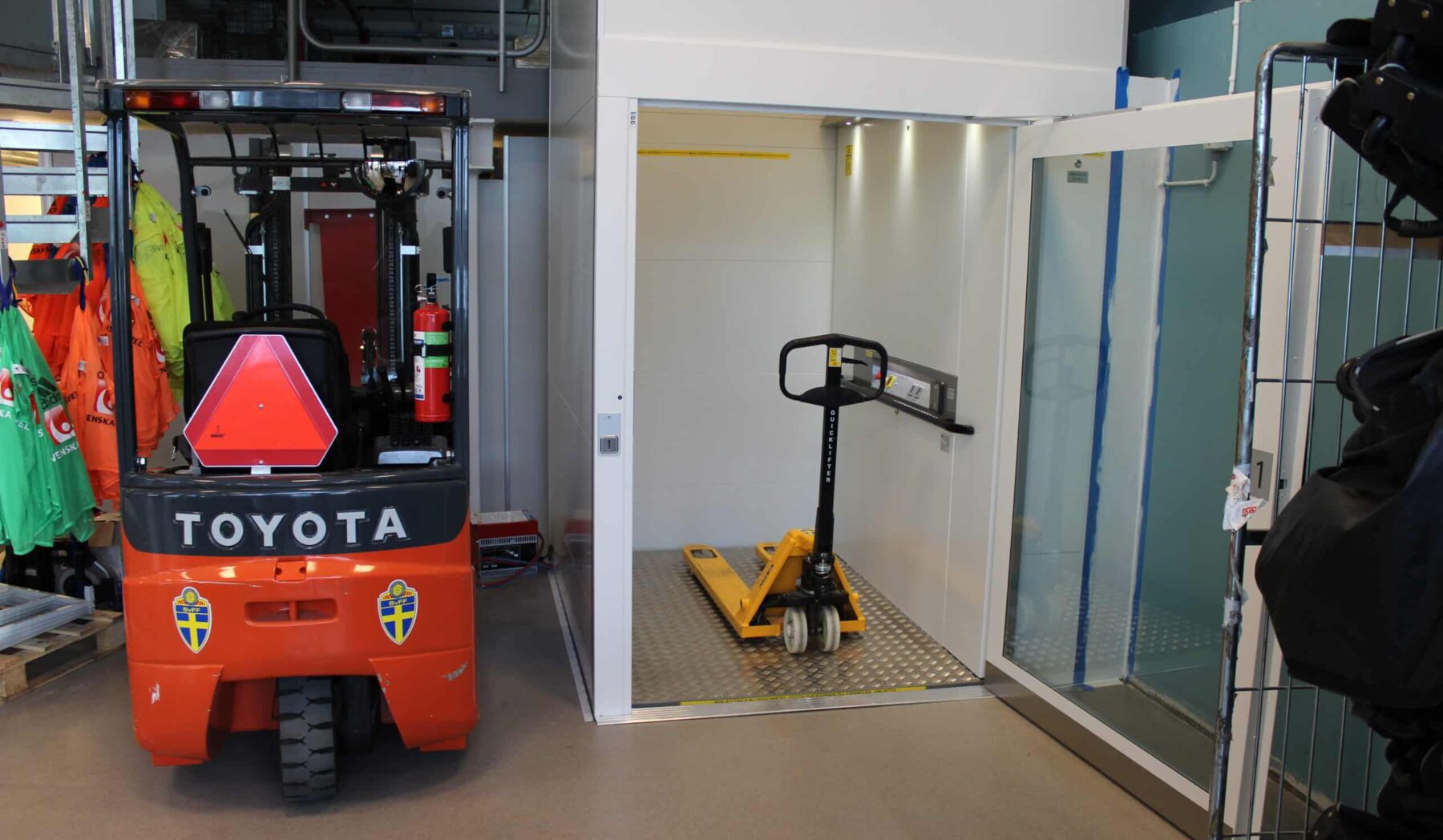

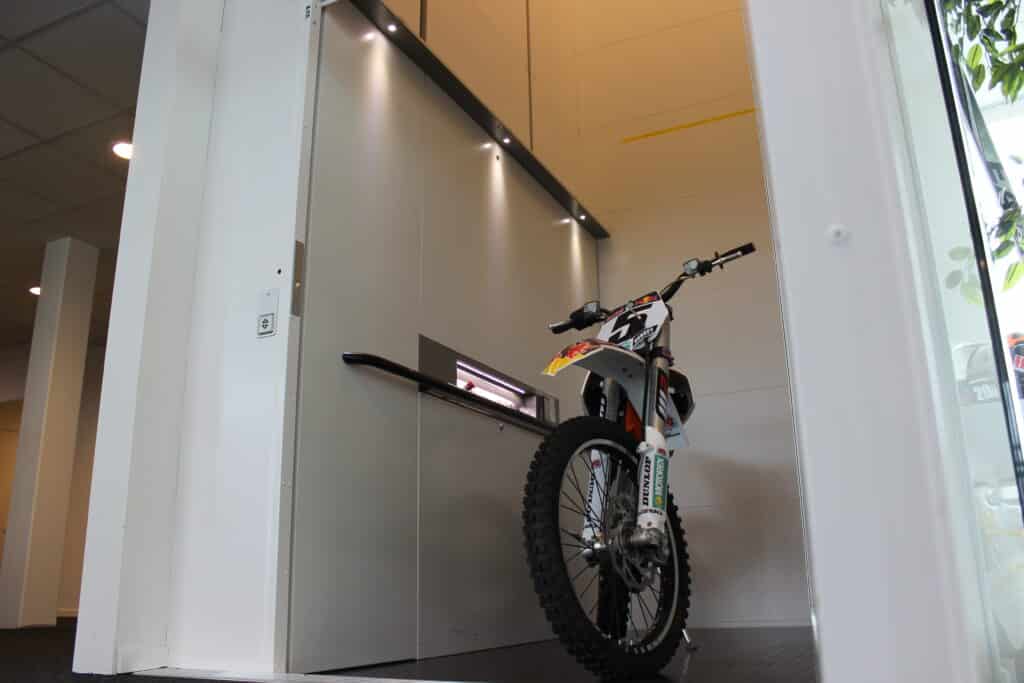

This model offers a 1000kg capacity for passengers, wheelchairs, stretchers, bikes, and goods. Built for larger loads and higher traffic sites, it provides up to 13m travel across seven floors.
Sharing the same modular shaft design, it can be specified with glass or solid panels for a contemporary, durable finish.
Platform sizes: 1100×2200 / 1400×2000 / 1400×2500 mm
Total footprint: 1560×2310 / 1860×2110 / 1860×2610 mm
ILS 500kg Platform Lift

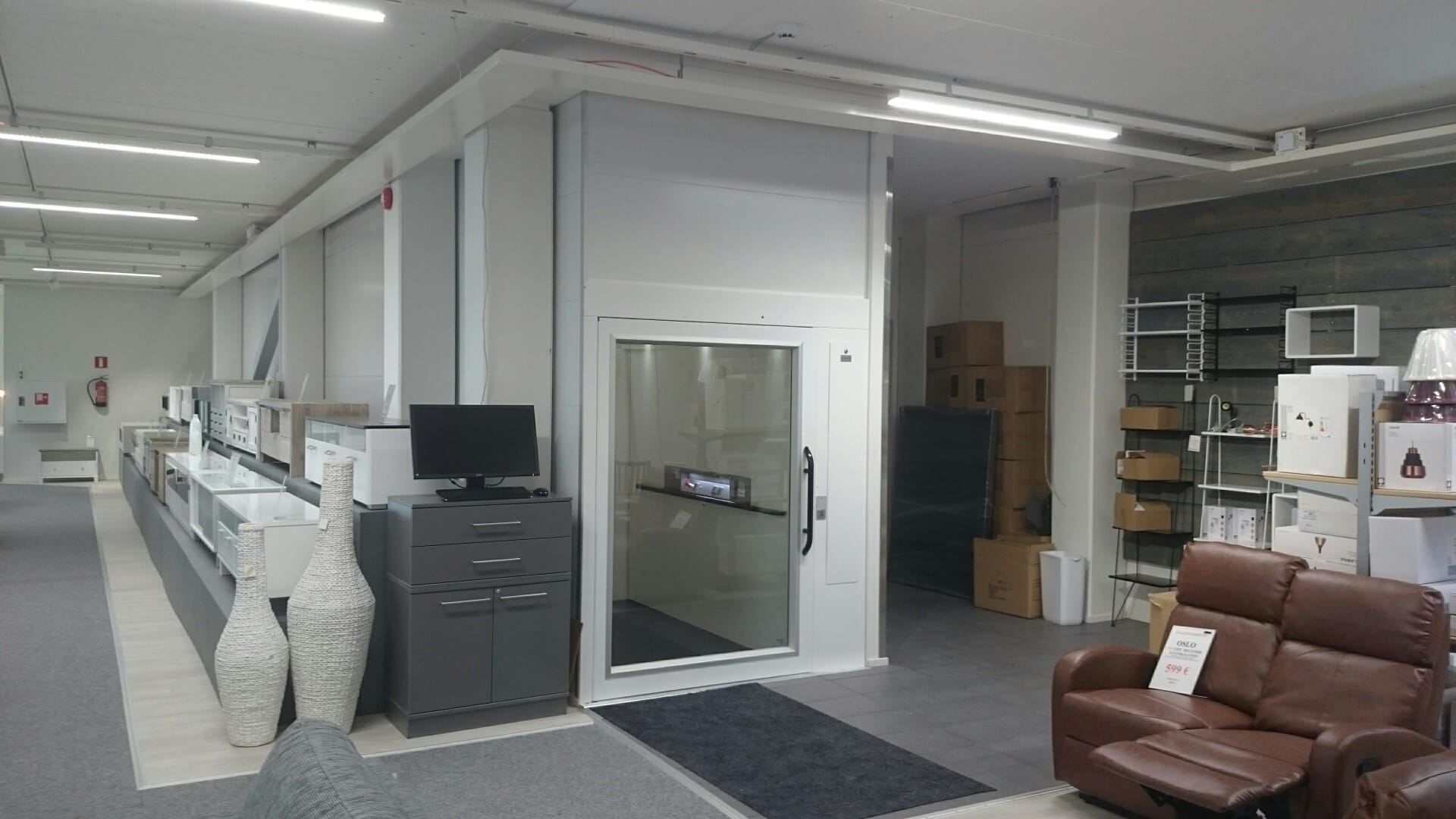

This model delivers up to 500kg capacity for passengers, wheelchair users, and light goods. With travel up to 13m and doors on up to three sides, it provides flexibility for offices, showrooms, and care facilities.
No head fixing or machine room required, enabling fast, low-impact installation.
Platform sizes: 1100×1400 / 1100×1500 / 1100×1600 mm
Total footprint: 1500×1510 / 1500×1610 / 1500×1710 mm
Key Specifications
Type of Lift |
Internal platform lift for public and commercial environments |
Usage |
Passenger, wheelchair and goods platform lift |
Environment |
Internal only |
Capacity |
1000kg 500kg |
Travel |
Up to 13,000 mm |
Floors |
2–7 |
Top Height |
1000kg: 2400 mm min (no head fixing required) 500kg: 2300 mm min |
Speed |
0.15 m/s |
Drive System |
Screw and nut drive with emergency battery backup |
Platform Controls |
Constant pressure operation |
Landing Controls |
Single press operation; key control optional |
Power Supply |
1000kg: 400V 3-phase 500kg: 240V 1-phase or 400V 3-phase |
Shaft Design |

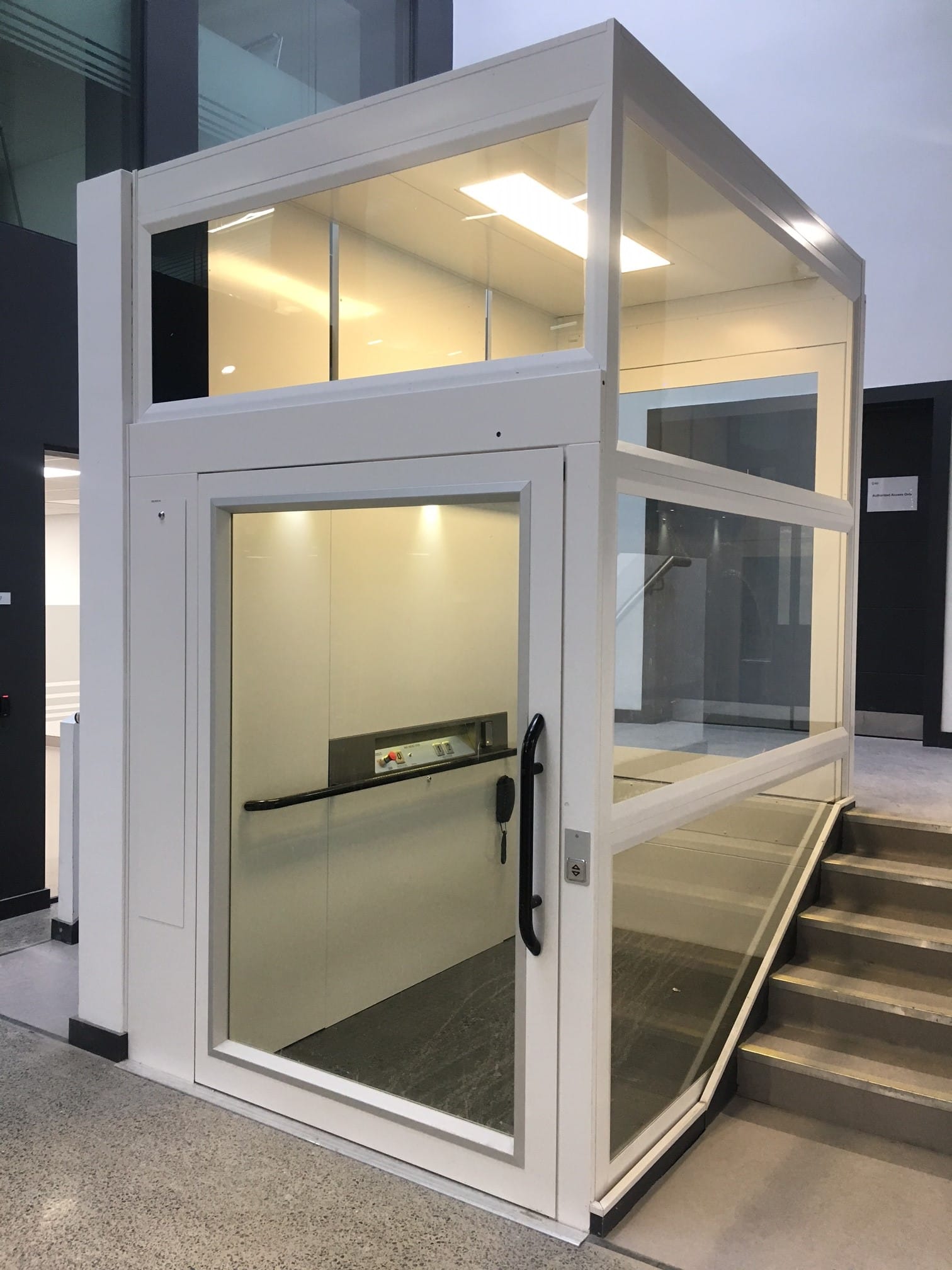

Supplied self-supporting shaft with glass or solid RAL panels |
Doors |
Fully glazed swing doors; optional vision panels or fire-rated EI60 doors |
Door Configuration |
Up to 3 sides, maximum 2 doors per floor |
Safety Features |
Overload protection, safety edges, emergency stop, battery backup |
Compliance |
EN81-41, Machinery Directive, Building Regulations Part M |
Installation |
No machine room, minimal pit depth (110 mm) |
Your Choice for Reliable & Heavy-Duty Platform Lifts
With over 30 years of experience, we stand as the UK’s leading supplier of platform lifts for commercial and public buildings. Our in-house engineers provide nationwide installation and servicing, ensuring every project meets the latest safety and accessibility standards, and each lift is designed for low maintenance and quick installation, all supported by comprehensive service packages for long-term reliability.
Optional Features
Doors |

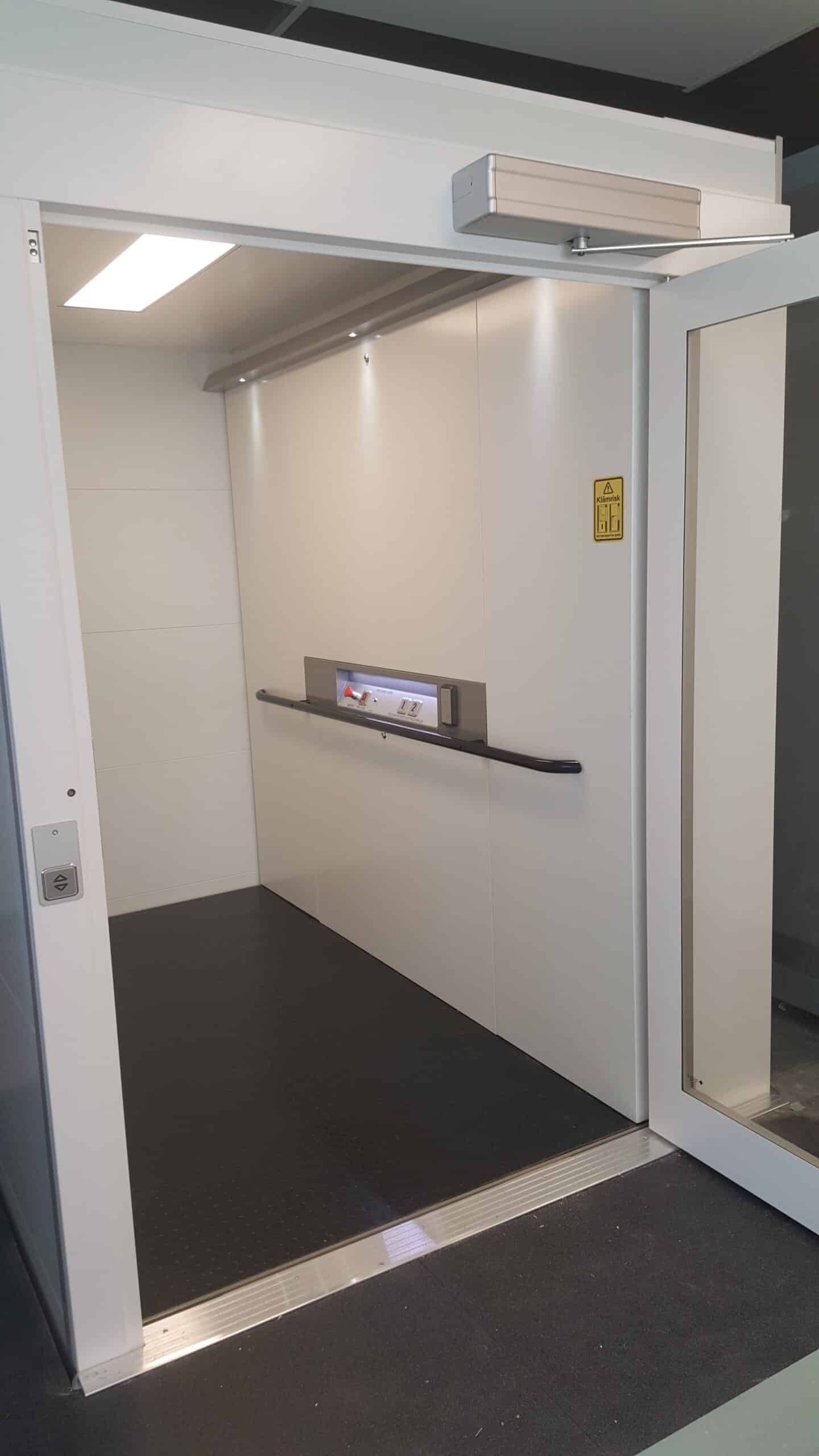

Panoramic glass or EI60 fire-rated; optional automatic opener; widened door (500: 1000mm / 1000: 1300mm) |
Cabin Finish |
Optional mirrors, LED lighting, and custom RAL colour options |
Flooring |
Black rubber (standard) or aluminium checkerplate for heavy-duty use |
Display & Controls |
LED cabin and landing displays, tactile and braille buttons, optional voice annunciation |
Security |
Key locking, overload protection and pressure-sensitive safety edges |
Communication |
Alarm button with autodialler as standard; GSM autodialler or intercom optional |
Shaft Panels |
White (RAL 9010/9003) as standard; optional full glass or alternative RAL colours |
Accessibility |
Automatic doors and widened entrances available for powered wheelchairs or stretchers |
FAQs
What is the difference between the 1000kg and 500kg models? |
Both platform lifts share the same design and performance features, differing only in load capacity and platform size. The 1000kg model is suited to larger or heavier loads such as stretchers, bikes, and bulk items, while the 500kg model is ideal for passengers. |
What environments are these lifts best suited for? |
Both models are designed for internal use in commercial and public buildings. Typical installations include offices, showrooms, retail spaces, care homes, and healthcare environments, where frequent vertical movement of people or goods is required. |
Is a pit or machine room required? |
No. The lift features a modular, self-supporting shaft with all machinery contained within the structure. Only a 110mm pit or ramp is required at the lowest floor, and no separate machine room or head fixing is needed. |
How long does installation take? |
Installation times vary depending on site conditions, but the modular shaft system allows for quick, low-disruption fitting. In most cases, installation is completed significantly faster than traditional hydraulic lift systems. |
Can the lifts be customised? |
Yes. A wide range of customisation options are available, including glass or fire-rated doors, RAL colour finishes, LED lighting, automatic doors, and accessibility enhancements such as wider entrances. |
How much does an ILS High Capacity Platform Lift cost? |
Pricing varies depending on configuration, travel height, and optional features such as glass panels or automatic doors. For detailed quotations and guidance on suitable specifications, contact sales@gartec.com |
What safety features are included as standard? |
Both lifts include overload protection, safety edges, emergency stop controls, and battery backup for lowering in the event of power loss. All models are fully compliant with EN81-41, the Machinery Directive and Part M regulations. |
Does Gartec offer other goods lift options? |
Yes. For heavier-duty goods movement, the GLE Rhino Goods Lift offers load capacities up to 2,000kg and is designed specifically for warehouse and industrial use. We can also supply compact goods-only and goods-with-attendant models for varied commercial requirements. |
Find the Right Model
Our team can advise on the best configuration for your site and handle every stage from design to installation. Contact us to arrange a free survey or download the ILS 1000kg & 500kg brochures for full details.
